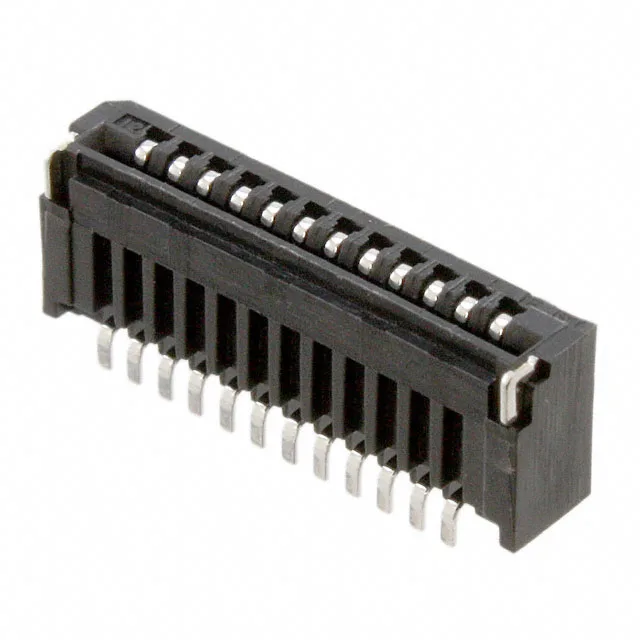

The 12FMN-SMT-A-TF is a 12-position, 1.00 mm pitch FFC connector from JST's FMN series, designed for surface-mount, right-angle board attachment. It accepts 0.30 mm thick FFC cables and uses a top-contact arrangement — the cable's conductive pads must face upward when inserted, or the flipped flex shorts the wrong row. Each contact is rated 0.5 A at 50 V, with tin-plated phosphor bronze contacts and a UL94 V-0 polyamide (PA6T) housing.
12FMN-SMT-A-TF JST FMN FFC Connector 12 Pos 1mm Top Contact
MPN12FMN-SMT-A-TF
Active
JST FMN series FFC connector, 12 positions, 1.00 mm pitch, top-contact, right-angle SMT, tin-plated phosphor bronze contacts, rated 0.5 A per contact at 50 V, UL94 V-0 housing, -25°C to 85°C operating range.
$0.7700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFMN
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FMN |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Height above board | 0.118\" (3.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Low Insertion Force (LIF) |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 12 |
Product details
Frequently asked questions
Where can I buy 12FMN-SMT-A-TF?
Submit an RFQ for your target volume.
What is the pitch of 12FMN-SMT-A-TF?
0.039" (1.00 mm) pitch — standard for this FMN series FFC connector family.
Is 12FMN-SMT-A-TF RoHS compliant?
Yes, RoHS Compliant per the listing.
