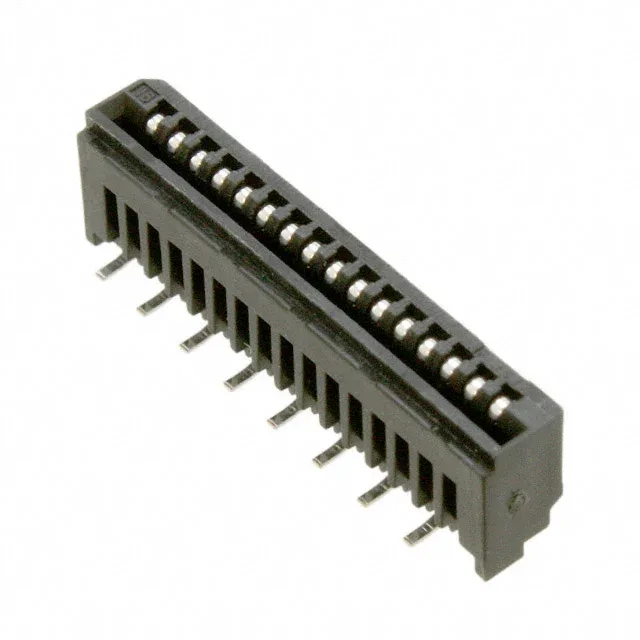

16FMN-BMTTR-A-TB JST FFC Connector 1mm Pitch 16 Pos SMT

MPN16FMN-BMTTR-A-TB
Active

JST FMN series FFC connector, 16FMN-BMTTR-A-TB, 0.039" (1.00mm) pitch, 16 positions, vertical SMT, tin-plated phosphor bronze contacts, 0.5 A, 50 V, Low Insertion Force (LIF) actuation, UL94 V-0 housing.

$0.9300Ref. price · indicative, final on quote
16FMN-BMTTR-A-TB datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

16FMN-BMTTR-A-TB Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-25°C ~ 85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.201\" (5.10mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions16

Product details

The 16FMN-BMTTR-A-TB: This is a JST FMN series FFC connector, 16 positions on 0.039" (1.00mm) pitch, vertical SMT termination, with Low Insertion Force (LIF) actuation. It accepts a 0.30mm-thick FFC cable and makes contact on one side only (vertical, 1-sided). The housing is black UL94 V-0 polyamide (PA6T), contacts are tin-plated phosphor bronze. Typical use is in compact signal interconnects where a low-profile vertical FFC socket is needed on a PCB — think display ribbon, sensor cable, or internal board-to-flex harness.

Sourcing and compliance note

RoHS non-compliant — check your BOM's environmental requirements before committing.

Frequently asked questions

Is 16FMN-BMTTR-A-TB RoHS compliant?

No, this part is listed as RoHS non-compliant.

What is the pitch and number of positions for 16FMN-BMTTR-A-TB?

Pitch is 0.039" (1.00mm) and it has 16 positions.

What is the closest functional second-source for 16FMN-BMTTR-A-TB?

The peer 16FMN-BMTTR-A-TB(LF)(SN) is electrically and mechanically identical — same pitch, positions, height, current rating, and LIF feature. The only difference is the (LF)(SN) suffix indicates lead-free and tin-plating compliance; verify RoHS status separately.
