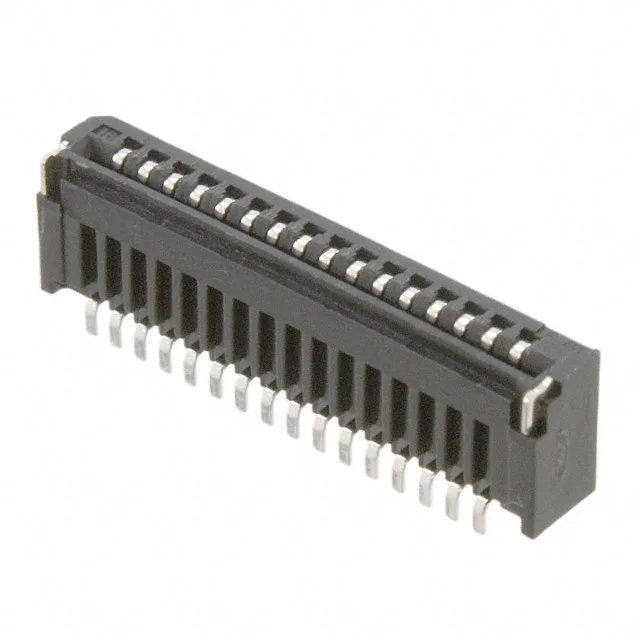

JST Sales America Inc., FMN series, FFC connector, 16 circuits, 0.039" (1.00mm) pitch, surface-mount right-angle, top-contact, tin-plated phosphor bronze contacts, LIF actuation, UL94 V-0 PA6T housing.
| Parameter | Value |
|---|---|
| Series | FMN |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Height above board | 0.118\" (3.00mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Low Insertion Force (LIF) |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 16 |
The 16FMN-SMT-A-TF: This is a 16-position FFC connector on 0.039" (1.00mm) pitch, surface-mount right-angle, with top-contact termination.
Active lifecycle status — JST continues to manufacture this order code. No last-time-buy notice or successor on record.
No — this part is RoHS non-compliant. For a RoHS-compliant alternative with the same form, fit, and function, use the 16FMN-SMT-A-TF(LF)(SN) variant.
0.039" (1.00mm) pitch with 16 positions. The connector accepts 0.30mm-thick FFC and mates with any standard 1mm-pitch FFC cable having the same top-contact orientation.
