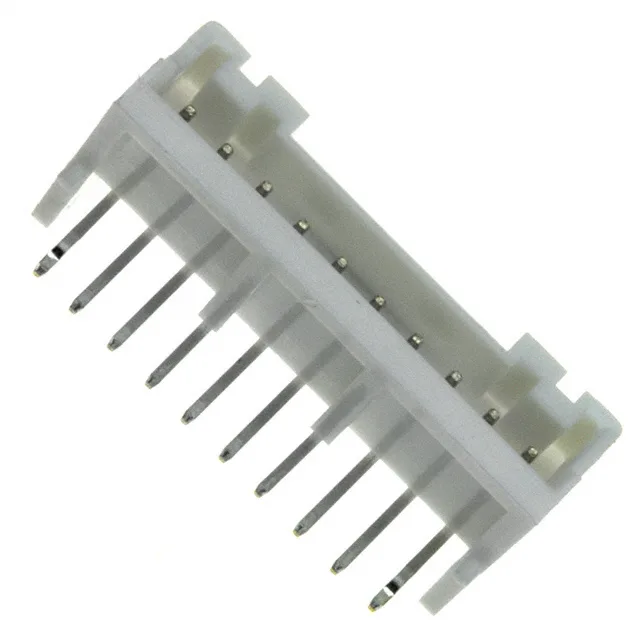

S10B-PASK-2 — JST product photo
JST

S10B-PASK-2 JST PA 10-Position Right-Angle Header 2mm Pitch

MPNS10B-PASK-2
Active

JST PA series, S10B-PASK-2, Board to Cable/Wire, Header, Male Pin, 10 positions, 1 row, 0.079" (2.00mm) pitch, Through Hole, Right Angle, Solder, 3A, 250V, Locking Ramp, Shrouded - 4 Wall, UL94 V-0, Natural, Bulk

$0.8000Ref. price · indicative, final on quote
S10B-PASK-2 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S10B-PASK-2 Technical Specifications
ParameterValue
SeriesPA
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.256\" (6.50mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions10
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin
Contact length - mating0.126\" (3.20mm)

Product details

10-position, 2.00mm pitch, right-angle locking header

The S10B-PASK-2 is a 10-position, single-row header from JST's PA series, on a 0.079" (2.00mm) pitch. It terminates through-hole, right-angle, with kinked solder pins, and mates with the PA series crimp receptacle to connect a PCB to a discrete wire harness.

Locking ramp and full shrouding for vibration-prone assemblies

Active production, RoHS non-compliant — lead-free variant available

Position count choice: 9, 10, or 12 circuits

Within the PA right-angle shrouded header family, the S10B-PASK-2 sits between the 9-position S09B-PASK-2 and the 12-position S12B-PASK-2.

Frequently asked questions

What is the mating connector for S10B-PASK-2?

The S10B-PASK-2 mates with a JST PA series crimp receptacle housing and matching crimp terminals (sold separately). The receptacle is a 10-position, single-row housing that accepts the appropriate PA crimp contacts for discrete wire termination.

Is S10B-PASK-2 RoHS compliant?

No, the S10B-PASK-2 is marked RoHS non-compliant. For RoHS compliance, use the functionally identical S10B-PASK-2(LF)(SN) variant, which shares the same pitch, position count, and mating interface.

What is the current rating of S10B-PASK-2?

The S10B-PASK-2 is rated 3A per contact at 250V. This suits signal and low-power distribution within indoor equipment enclosures; derate current above the stated temperature per the derating curve in the product drawing.
