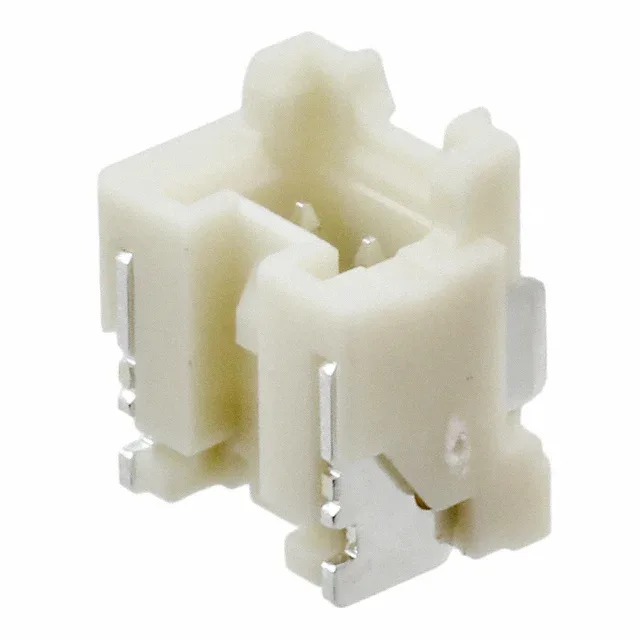

SM02B-PASS-TBT — JST product photo
JST

SM02B-PASS-TBT JST PA Series 2-Pin Header, SMT Right Angle

MPNSM02B-PASS-TBT
Active

JST PA series, SM02B-PASS-TBT, 2-position male pin header, surface mount right-angle, 2.00 mm pitch, 3 A, 250 V, locking ramp, shrouded 4-wall, UL94 V-0, natural nylon.

$0.6700Ref. price · indicative, final on quote
SM02B-PASS-TBT datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SM02B-PASS-TBT Technical Specifications
ParameterValue
SeriesPA
GenderMale Pin
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.224\" (5.69mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions2
Contact finish - postTin
Contact finish - matingTin

Product details

Mounting and termination specifics

Termination is solder — the header is designed for surface-mount reflow assembly. The insulation height is 0.224 inches (5.69 mm) above the board.

The SM02B-PASS-TBT (2 positions) and SM03B-PASS-TBT (3 positions) share identical pitch (2.00 mm), current rating (3 A), voltage rating (250 V), mounting (SMT right-angle), and locking ramp fastening. If your BOM calls for 3 positions, the SM03B-PASS-TBT is a direct drop-in in the same series. For 2 positions, the SM02B-PASS-TBT is the correct part.

Frequently asked questions

Is SM02B-PASS-TBT RoHS compliant?

No, the SM02B-PASS-TBT is listed as RoHS non-compliant. For a RoHS-compliant version, use the SM02B-PASS-TBT(LF)(SN) variant, which shares the same 2-position, 2.00 mm pitch, SMT right-angle design.
