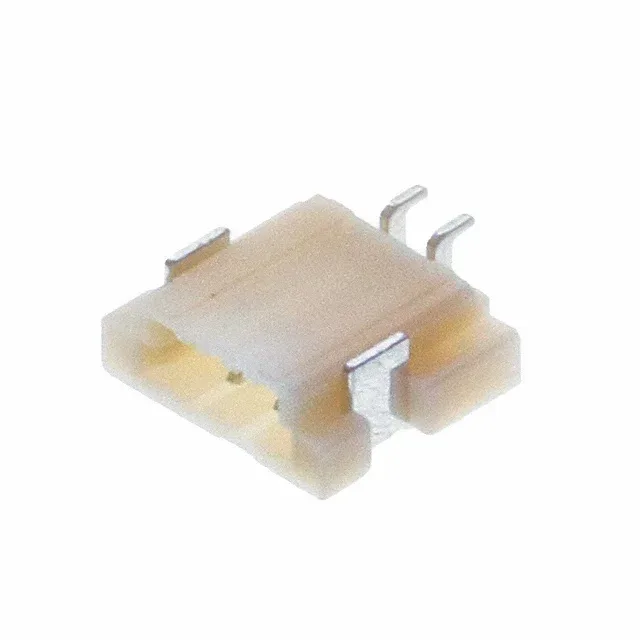

JST SHL series, 2-position, 1.00 mm pitch, surface-mount right-angle header, shrouded 4-wall, tin-plated contacts, rated 1 A at 50 V, with solder retention features.
| Parameter | Value |
|---|---|
| Series | SHL |
| Type | Outer Shroud Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.069\" (1.75mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The full 4-wall shroud protects the two tin-plated phosphor bronze contacts from being bent during handling or blind mating.
Solder retention tabs on the shroud provide extra hold-down force during reflow, reducing the risk of the connector lifting or shifting on the pads.
The base product number is SM02B-SH, so the -TF suffix indicates the tape-and-reel format.
The mating pitch is 0.039 inches (1.00 mm).
The SM02B-SHLS-TF(LF)(SN) variant is functionally identical — same pitch, positions, current rating, and shroud. The (LF)(SN) suffix indicates lead-free and tin-nickel plating on the post. Confirm the BOM's plating requirement before substituting.
