0734155035
Molex

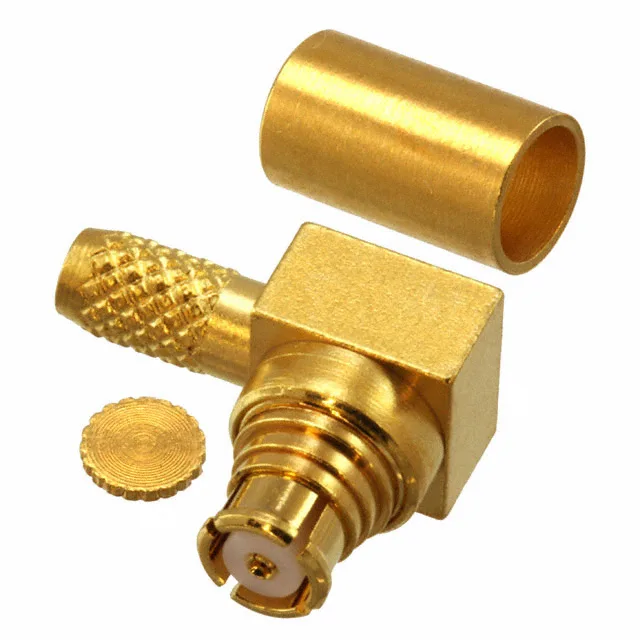

Free Hanging (In-Line), Right AngleBag73415
Ref. price$14.5600
Lead time on requestGet quote
Molex 073415 Series
10 variants · Molex
About the Molex 073415 Series
IC Source Direct is a China connector distributor, supplier and independent procurement agent for Molex 073415 Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The Molex 073415 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common insertion loss of -, IP rating of - and mounting feature of -. Variants differ by body finish, body material and center contact material, so you can match the exact body finish your application requires using the selection guide below. All listed Molex 073415 Series part numbers are active and orderable.
Select a variant by
- Body finish
- - · Gold
- Body material
- - · Beryllium Copper · Brass
- Center contact material
- - · Beryllium Copper · Brass
- Center contact plating
- - · Gold
- Dielectric material
- - · Liquid Crystal Polymer (LCP) · Polytetrafluoroethylene (PTFE)
- Fastening type
- Snap-On · Snap-On, Snap-On
- Features
- - · Full Detent · Smooth Bore
- Impedance
- - · 50 Ohms
Shared specifications
- Insertion loss
- -
- IP rating
- -
- Mounting feature
- -
Variant comparison
| Parameter | 0734154161 | 0734155035 | 0734155122 | 0734153031 | 0734153350 | 0734153811 |
|---|---|---|---|---|---|---|
| Body finish | Gold | Gold | Gold | Gold | Gold | - |
| Body material | Brass | Brass | Beryllium Copper | Beryllium Copper | Beryllium Copper | - |
| Center contact material | Brass | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | - |
| Center contact plating | Gold | Gold | Gold | Gold | Gold | - |
| Dielectric material | Liquid Crystal Polymer (LCP) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | - |
| Fastening type | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On, Snap-On | Snap-On |
| Features | Full Detent | - | - | - | - | Smooth Bore |
| Impedance | - | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | - |
Request a quote on any Molex 073415 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
