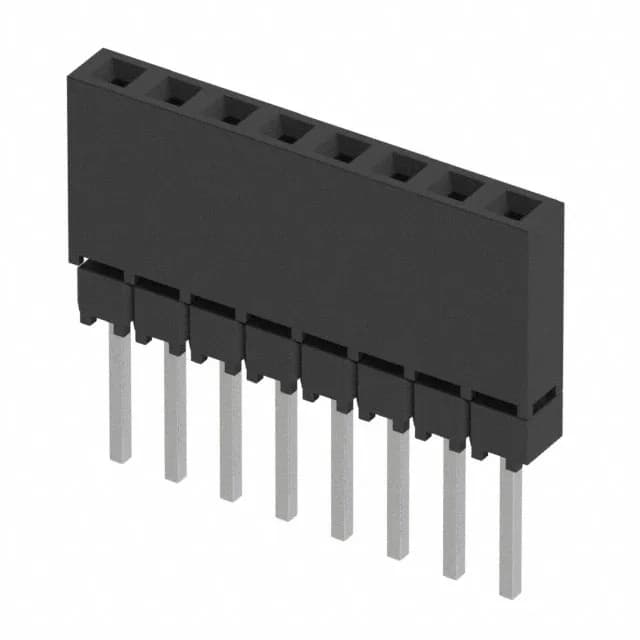

Samtec Inc. ESQ-108-13-T-S — Female Socket Headers

Samtec Inc. ESQ-108-13-T-S

MPNESQ-108-13-T-S
Active

CONN SOCKET 8POS 0.1 TIN PCB

$1.9400Ref. price · indicative, final on quote
Samtec Inc. ESQ-108-13-T-S datasheet (PDF)
RoHSROHS3 Compliant
SeriesESQ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ESQ-108-13-T-S key specifications
ParameterValue
SeriesESQ
TypeForked
MountingThrough Hole
Connector typeElevated Socket
Fastening typePush-Pull
Voltage rating550VAC
Current rating5.7A per Contact
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.435\" (11.05mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

ESQ-108-13-T-S additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions8
Contact finish - postTin
Contact length - post0.290\" (7.37mm)
Contact finish - matingTin
