Samtec Inc. IPBT-104-H2-T-D-K — Pin Headers

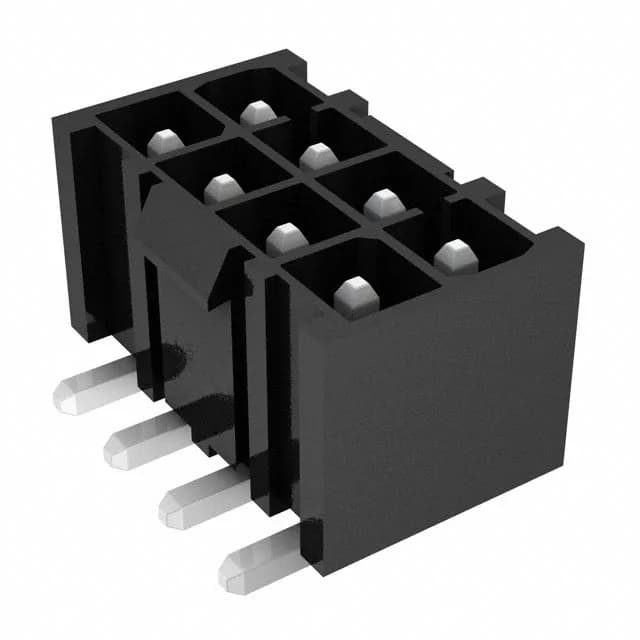

Samtec Inc. IPBT-104-H2-T-D-K

MPNIPBT-104-H2-T-D-K
Active

CONN HEADER SMD 8POS 4.2MM

$3.1600Ref. price · indicative, final on quote
Samtec Inc. IPBT-104-H2-T-D-K datasheet (PDF)
RoHSROHS3 Compliant
SeriesPower Mate® IPBT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

IPBT-104-H2-T-D-K key specifications
ParameterValue
SeriesPower Mate® IPBT
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating400VAC, 565VDC
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.380\" (9.65mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0

All specifications

IPBT-104-H2-T-D-K additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions8
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.260\" (6.60mm)
