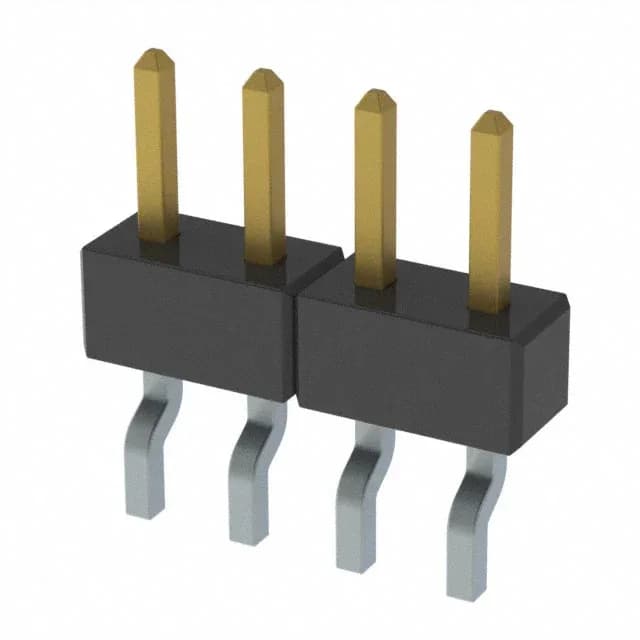

Samtec Inc. MMT-104-01-F-SH
MPNMMT-104-01-F-SH
Active
CONN HEADER SMD R/A 4POS 2MM
$1.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMMT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MMT |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.079\" (2.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.126\" (3.20mm) |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
