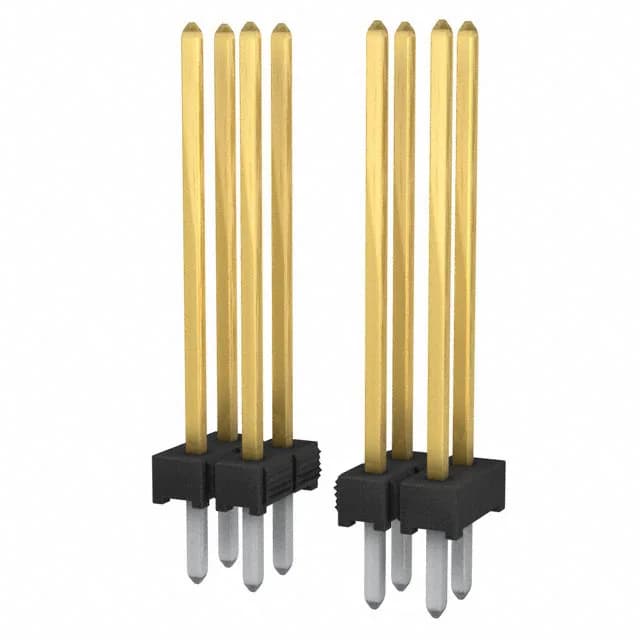

Samtec Inc. MTMM-120-13-S-D-510
MPNMTMM-120-13-S-D-510
Active
CONN HEADER VERT 40POS 2MM
$11.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTMM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MTMM |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 40 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.104\" (2.64mm) |
| Overall contact length | 0.673\" (17.09mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.510\" (12.95mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
