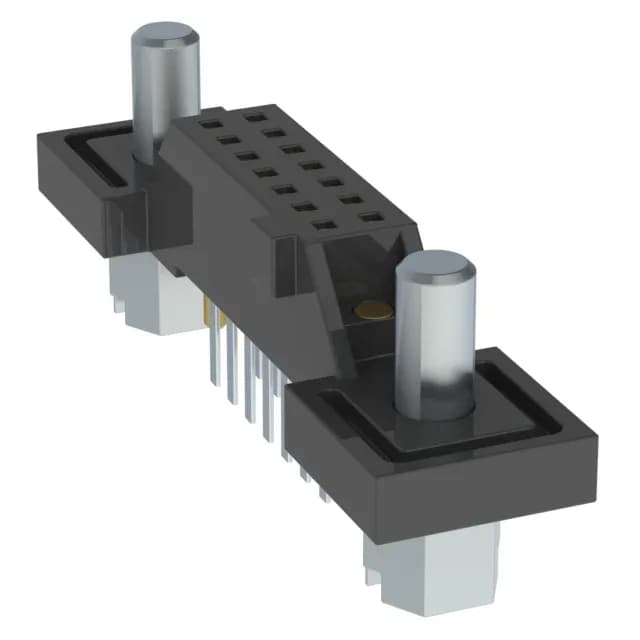

Samtec Inc. SFM-107-01-L-D-DS
MPNSFM-107-01-L-D-DS
Active
CONN RCPT 14POS 0.05 GOLD PCB
$8.1200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTiger Eye™ SFM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Tiger Eye™ SFM |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 3.2A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.180\" (4.57mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Mounting Flange, Mounting Hardware |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 14 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
