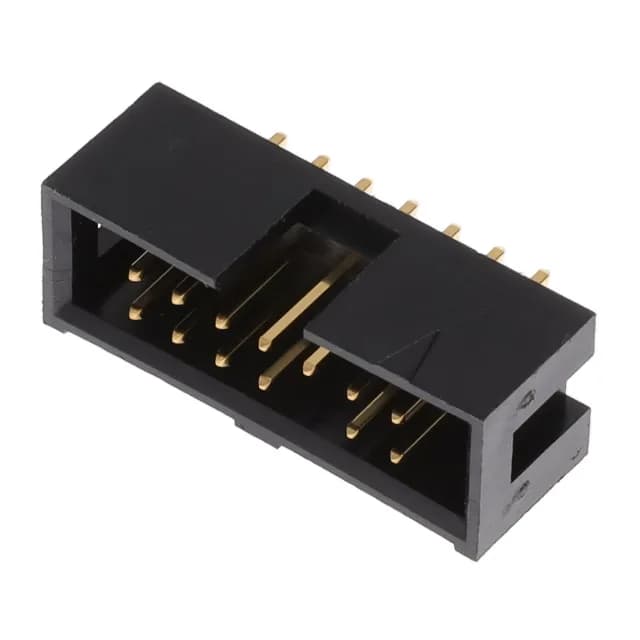

Samtec Inc. TST-107-01-G-D-06
MPNTST-107-01-G-D-06
Active
CONN HEADER VERT 14POS 2.54MM
$4.2700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, TST
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, TST |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3.4A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.115\" (2.92mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.250\" (6.35mm) |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
