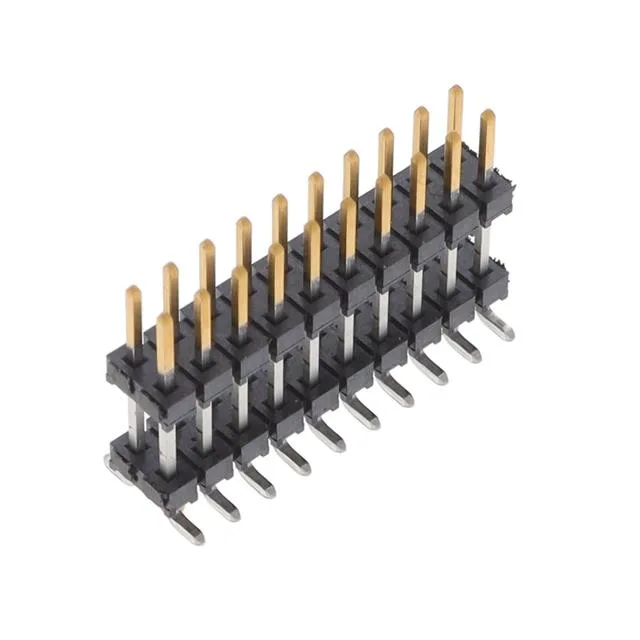

CONN HDR 20POS 0.079 STACK SMD
$6.18Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, TW |
| Mounting type | Surface Mount |
| Color | Black |
| Length - stack height | 0.320\" (8.128mm) |
| Pitch | 0.079\" (2.00mm) |
| Package | Tube |
| Row spacing | 0.079\" (2.00mm) |
| Termination | Solder |
| Rows | 2 |
| Positions | 20 |
| Length - overall pin | 0.487\" (12.370mm) |
| Length - post (Mating) | 0.167\" (4.242mm) |
| Contact finish - post (Mating) | Gold |
| Contact finish thickness - post (Mating) | 10.0µin (0.25µm) |
Sourcing this connector
Samtec Inc. TW-10-04-L-D-320-SM-A is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Samtec Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
