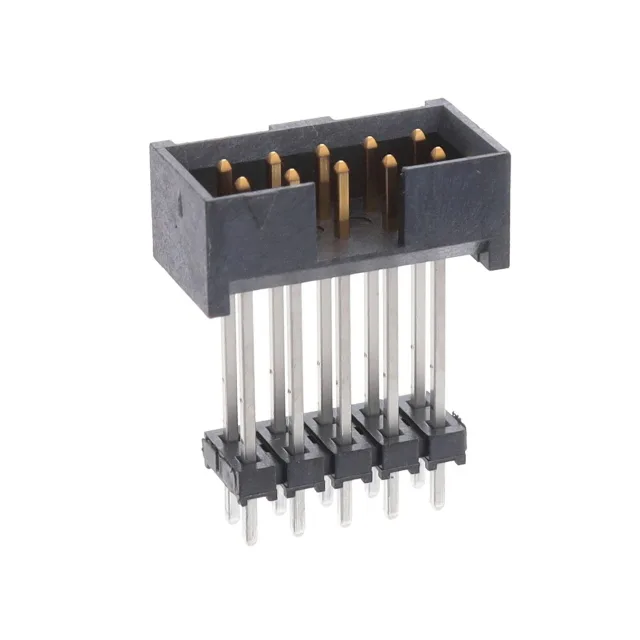

ZLTMM-105-69-F-D-529 - Samtec Inc.
MPNZLTMM-105-69-F-D-529
Active
2.00 MM SHROUDED VARIABLE STACK
$5.98Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, ZLTMM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, ZLTMM |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Elevated |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.529\" (13.44mm) |
| Insulation material | Polyamide (PA), Nylon |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.614\" (15.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
