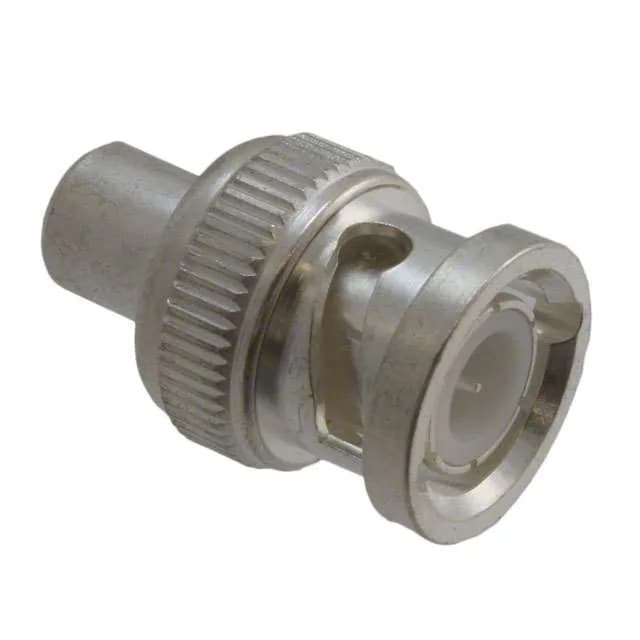

TE 1-1337470-0 BNC Plug, 75 Ohm, 1 GHz, Obsolete

MPN1-1337470-0
Obsolete

TE Connectivity BNC plug, male pin, 75 Ohms, 1 GHz, silver-plated brass body and contacts, PTFE dielectric, free-hanging cap mount, tray package.

$2.7300Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1-1337470-0 specifications
ParameterValue
MountingFree Hanging, Cap
Connector typePlug, Male Pin
Frequency - max1 GHz
Body materialBrass
Contact materialBrass
Dielectric materialPolytetrafluoroethylene (PTFE)
PackageTray
Impedance75 Ohms
Body finishSilver
Contact finishSilver

Product details

The silver-plated brass body and contacts, together with a PTFE dielectric, suit it for analog video, CCTV, and baseband broadcast signal paths where the 75 Ohm characteristic impedance matches the cable and equipment standard. This is a cable-end plug — free-hanging, cap-style mounting — not a panel or PCB jack.

The 75 Ohm impedance is the defining spec — this plug mates with 75 Ohm BNC jacks and cables only. A 50 Ohm BNC will physically connect but the impedance mismatch causes signal reflections above a few MHz; for video or broadcast use, stick with 75 Ohm mating halves. The 1 GHz frequency ceiling covers standard-definition and most high-definition analog video (up to 1080i), but not 3G-SDI or higher-rate digital video. The silver finish on both body and contacts provides adequate conductivity and corrosion resistance for indoor equipment rack and studio environments, though it lacks the mating-cycle endurance of gold-over-nickel plating found on higher-grade broadcast connectors.

Frequently asked questions

Where can I buy 1-1337470-0 and how do I get a price?

The 1-1337470-0 is an obsolete part sourced through independent distribution and surplus channels. Submit an RFQ to the storefront with your target quantity — current availability and pricing are confirmed at quote time.

What is the maximum frequency rating for 1-1337470-0?

The frequency maximum is 1 GHz. This covers standard-definition and most high-definition analog video signals but not 3G-SDI or higher-rate digital video streams.
