DuoPlug 3-Position IDC Receptacle for Harness Repair

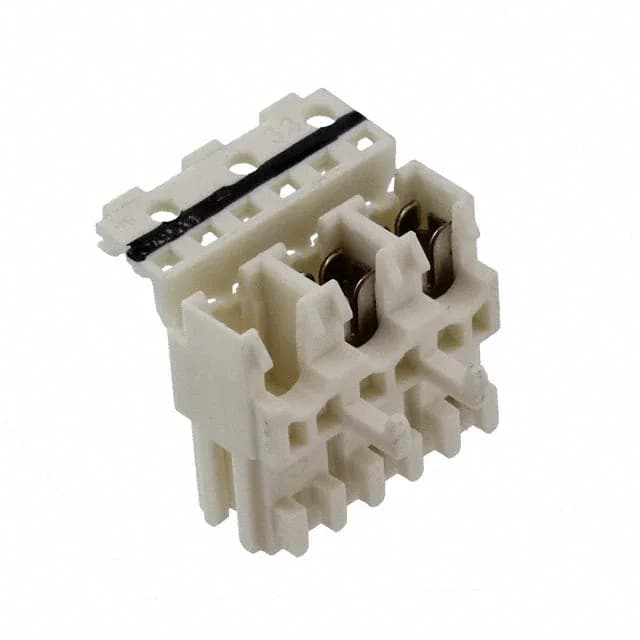

The TE Connectivity DuoPlug 1-1740533-3 is a 3-position IDC receptacle in a natural housing, built for discrete wire termination without a crimp tool. The female blade socket contacts are tin-plated, which handles the mating cycle count for field-service life without the cost of gold.
The 0.197" (5.00mm) pitch is wider than the 2.54 mm or 2.00 mm you see on signal IDC connectors. That extra spacing means the board footprint is forgiving — you can route a trace between pads without necking down, and the creepage distance supports higher working voltages in industrial or automotive environments. For a field retrofit, it also means the solder pads are big enough to hand-solder if the board has been reworked.
This receptacle terminates discrete wire via IDC (insulation displacement). That is the whole process — no crimp tool, no die set, no pull-test gauge. For a field tech who carries a basic kit, that is the difference between a 10-minute repair and a wait-for-harness delay. The right-angle exit also means the wire lies flat against the board, which helps with strain relief in a shallow enclosure.
Locking Ramp — Stays Put Under Vibration
That click is the confirmation that the connector is locked, not just pushed on. In a machine tool or a vehicle harness, vibration works connectors loose over time — the ramp keeps the pair mated until you deliberately release it. If you are replacing a connector that has been giving intermittent faults, this is the feature that fixes it.
Mating and Compliance
The connector is RoHS3 compliant, so it passes the material restriction check for EU-market equipment. The natural housing colour is the standard for this series; no colour-coding for keying, so verify the header orientation before assembly.
