TE Connectivity AMP Connectors 1-1761185-2 — Modular Jacks (RJ)

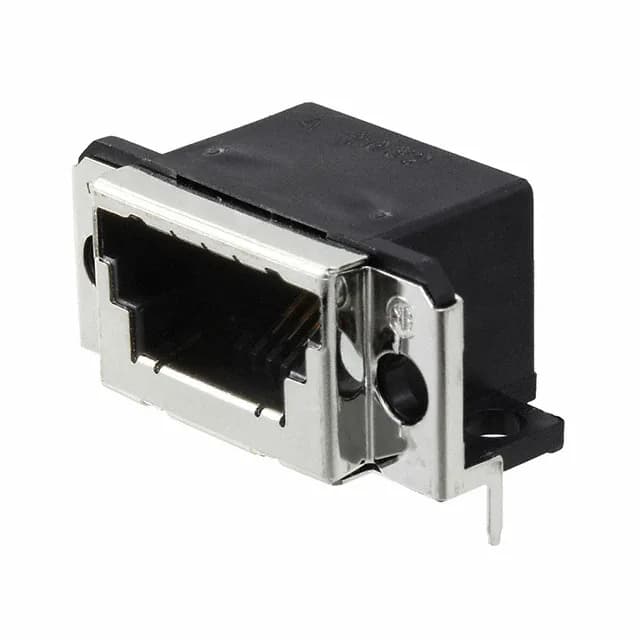

TE Connectivity 1-1761185-2 SDL Jack, 6P R/A Shielded

MPN1-1761185-2
Active

TE Connectivity SDL series modular jack, 1-1761185-2, 6 positions, 1 row, right-angle through-hole, shielded, gold 50.0µin contact finish, tray.

$10.0000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1761185-2 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1761185-2 specifications
ParameterValue
MountingThrough Hole
Connector typeSDL, Jack
Operating temperature-20°C ~ 80°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyester
PackageTray
FeaturesBoard Guide, Keyed
ShieldingShielded
Orientation90° Angle (Right)
TerminationSolder
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)6 Positions

Product details

Shielded 6-Position SDL Jack for Board-Edge Termination

It is a shielded variant, meaning the metal shell provides a ground path to bleed EMI before it reaches the signal contacts — a common requirement in telecom and networking equipment where the jack sits at the board edge near a chassis opening.

The shielded shell's ground legs also solder into plated through-holes, creating a low-impedance path to the board's ground plane.

For a BOM line requiring a shielded 6-position modular jack, this is the TE Connectivity order code to specify.

Frequently asked questions

Is 1-1761185-2 an active part or has it been discontinued?

1-1761185-2 is an Active part with ROHS3 compliance, per the manufacturer's lifecycle record. It has not been discontinued and no successor order code is listed.

What are the exact specifications of 1-1761185-2?

1-1761185-2 is a TE Connectivity SDL modular jack with 6 positions in a single row, right-angle through-hole mounting, shielded, with gold-plated (50.0µin) phosphor bronze contacts. It operates from -20°C to 80°C and is supplied in a tray.
