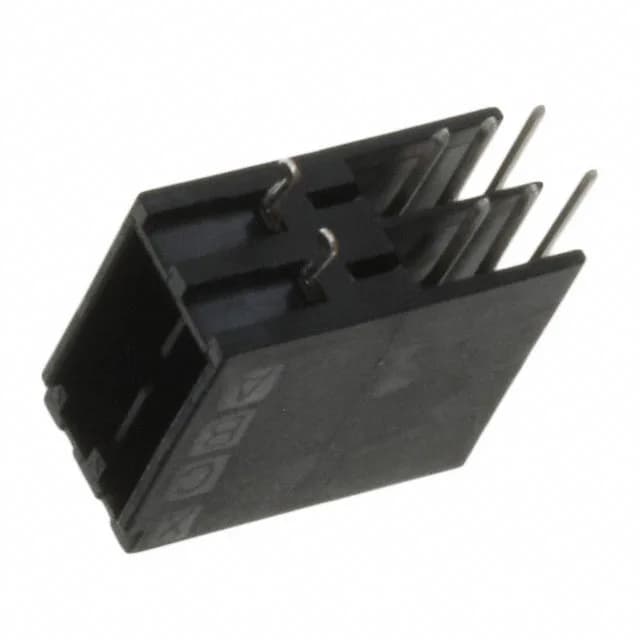

TE Connectivity AMP Connectors, Dynamic D-1500 series, Board to Board or Cable header, 6 positions, 3 rows, 0.138" (3.50mm) pitch, Through Hole, Solder termination, Gold mating finish, Shrouded - 4 Wall, Board Lock, Tube, 5A, 250V, -55°C ~ 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-1500 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.594\" (15.09mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 3 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 6 |
| Row spacing - mating | 0.130\" (3.30mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
It uses a 3.50mm pitch and a 3.30mm row spacing, which gives a medium-density footprint that balances routing space with contact current capacity. A board lock on the through-hole tails holds the connector in place during reflow and resists shear forces from cable strain.
Each contact is rated 5A at 250V, with the current limit set by the contact beam and housing temperature rise.
The 1-1827583-2 is a 6-position, 3-row header with all positions loaded. The pinout follows a standard 3-row grid at 3.50mm pitch and 3.30mm row spacing. Confirm the mating receptacle pin assignment from the Dynamic D-1500 series drawing.
Yes, the 1-1827583-2 is ROHS3 compliant.
The 1-1827583-2 mates with a Dynamic D-1500 series receptacle (socket housing) that accepts the matching tab contacts. The shrouded 4-wall header requires a receptacle with the same 3.50mm pitch and 3-row layout.
