TE Connectivity AMP Connectors 1-1827862-0 — Connector Housings

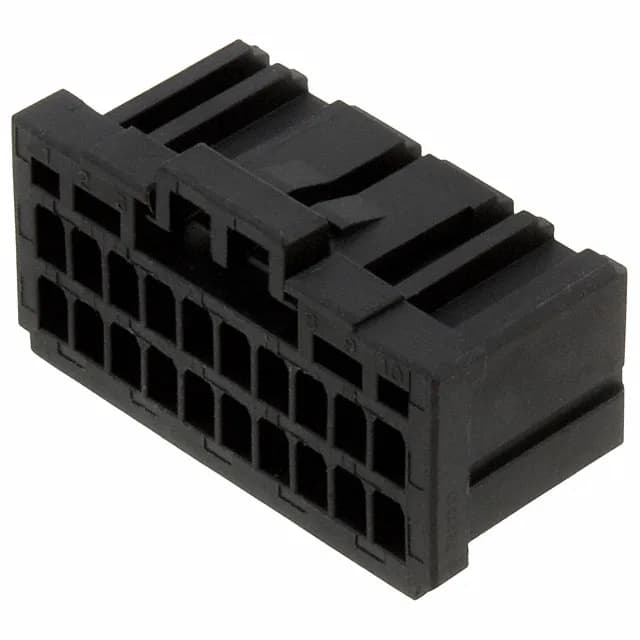

TE 1-1827862-0 Dynamic D-1100 Receptacle Housing, 20 Pos

MPN1-1827862-0
Active

TE Connectivity Dynamic D-1100 receptacle housing, 1-1827862-0, 20 positions, 2 rows, 2.00mm pitch, free-hanging crimp, black thermoplastic, polarizing key, contacts not included.

$1.3700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-1100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1827862-0 specifications
ParameterValue
SeriesDynamic D-1100
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
FeaturesPolarizing Key
Row spacing0.130\" (3.30mm)
Rows2
Contact terminationCrimp
Positions20

Product details

The TE 1-1827862-0 is a 20-position, 2-row receptacle housing from the Dynamic D-1100 series, on a 2.00 mm pitch. The polarizing key prevents inserting the housing into a mismatched header, which saves a harness rework when multiple connectors sit in the same panel.

The 30-position sibling (1-2333134-5) shares the same 2.00 mm pitch, 2-row layout, free-hanging crimp termination, and polarizing key. The difference is position count: 20 positions here versus 30 in the sibling. The 30-position housing also uses a locking ramp for additional retention, while this 20-position version does not list a locking ramp in the spec. If the harness requires 30 circuits at the same pitch, the 1-2333134-5 is the direct step-up. For 20 circuits, this housing is the correct BOM match.

Frequently asked questions

Does 1-1827862-0 include contacts?

No — the housing ships without contacts. The note on the part is Contacts Not Included. You need to order the matching female crimp terminals separately for the Dynamic D-1100 series.

What is the mating connector for 1-1827862-0?

This receptacle housing mates with a Dynamic D-1100 series header at the same 2.00 mm pitch and position count. The polarizing key on the housing ensures correct orientation with the matching header.

Where can I buy 1-1827862-0 available via RFQ confirmation?

This part is sourced to order against your BOM quantity.
