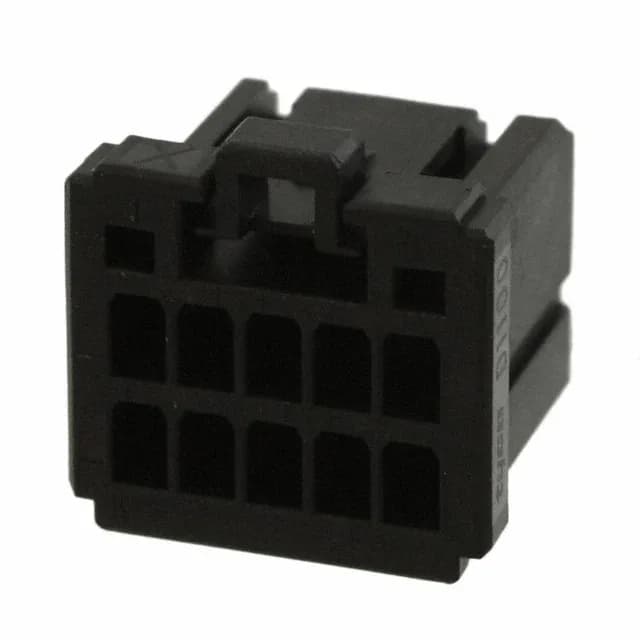

The TE Connectivity 1-1827862-5 is a 10-position, 2-row receptacle housing from the Dynamic D-1100 series, on a 2.00 mm pitch with a 3.30 mm row spacing. A polarizing key on the housing prevents mis-mating with an unkeyed header, which matters when the harness is assembled in the field and orientation is not negotiable.
Selecting the Right Contacts and Mating Header
This housing is a shell — it does not include the crimp contacts. You will need the matching TE Dynamic D-1100 female socket crimp terminals (typically ordered separately by part number for the wire gauge you are running). The 2.00 mm pitch means the mating header must also be from the Dynamic D-1100 series at the same pitch; a 2.54 mm header will not fit.
The 10-position 1-1827862-5 is the smallest dual-row Dynamic D-1100 receptacle housing in this subgroup. If your BOM calls for 20 circuits, the 1-1827862-0 is a direct swap in footprint and mating interface, just with twice the positions. There is also a 26-position (1-1827863-3) and a 28-position (1-1827863-4) variant that add a latch lock feature for vibration-resistant applications.
