TE Connectivity AMP Connectors 1-1827863-5 — Connector Housings

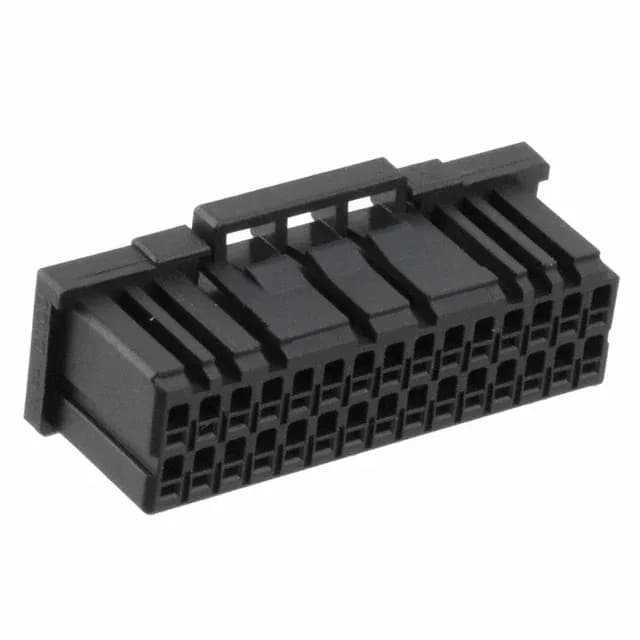

1-1827863-5 TE Dynamic D-1100 30 Pos Receptacle Housing

MPN1-1827863-5
Active

TE Connectivity Dynamic D-1100, 1-1827863-5, 30-position dual-row receptacle housing, 2.00mm pitch, latch lock, free-hanging, -55°C to 105°C, black thermoplastic, contacts not included.

$1.5700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1827863-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-1100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1827863-5 specifications
ParameterValue
SeriesDynamic D-1100
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
FeaturesPolarizing Key
Row spacing0.130\" (3.30mm)
Rows2
Contact terminationCrimp
Positions30

Product details

30-position dual-row housing for 2.00mm pitch harnesses

The 1-1827863-5 is a TE Connectivity Dynamic D-1100 series receptacle housing, 30 positions in two rows on a 2.00mm pitch, with 0.130" (3.30mm) row spacing.

Housing-only — order the crimp contacts separately

The buyer must source the matching TE Dynamic D-1100 female socket crimp terminals (e.g., part number 1-1827864-x series) for the target wire gauge. A polarizing key in the housing prevents mismating with non-keyed headers, a useful safeguard in multi-connector harnesses.

Frequently asked questions

What contacts and mating header are compatible with 1-1827863-5?

This housing accepts TE Dynamic D-1100 female socket crimp terminals (contacts not included). The mating header is a Dynamic D-1100 series pin header, 30 positions, 2.00mm pitch, dual row, with latch lock. Confirm the header's orientation (vertical or right-angle) for your board layout.
