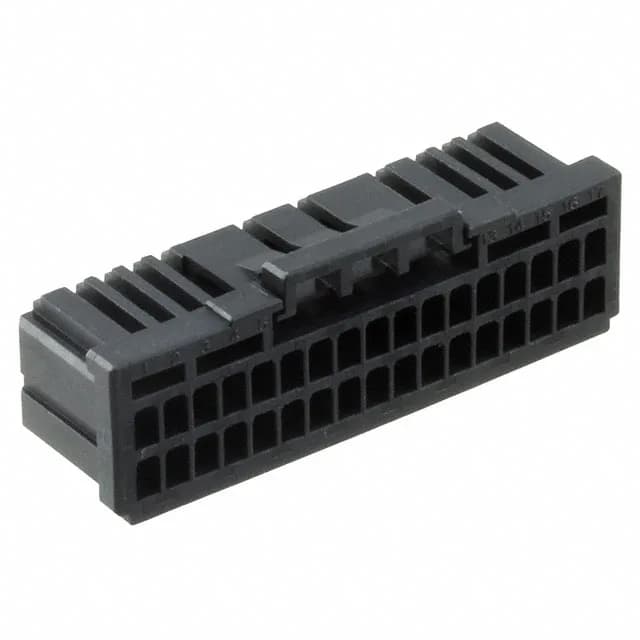

Receptacle Housing for Dynamic D-1100 Wire-to-Board Harnesses
The housing is free-hanging (in-line) for wire-to-board harness applications where the receptacle terminates a cable assembly and the header is board-mounted. The 2.00mm pitch and 3.30mm row spacing are the grid dimensions that define the mating interface — every header in the Dynamic D-1100 series shares this same contact spacing, so the fit check is simply position count and row count. The latch lock fastening provides audible positive retention when mated, and the integral polarizing key prevents incorrect insertion — a practical feature on a 34-position connector where a mis-mate could damage header pins.
Mating Interface and Contact Ordering
The 1-1827863-7 mates with any Dynamic D-1100 series pin header that has 34 positions in a 2-row configuration at the same 2.00mm pitch and 3.30mm row spacing.
Position Count Comparison within Dynamic D-1100
The 30-position 1-2333134-5 is the closest lower-count sibling — same 2.00mm pitch, same 2-row layout, same latch lock fastening. Both are active, both require separate contacts. No other functional difference separates them for harness design.
