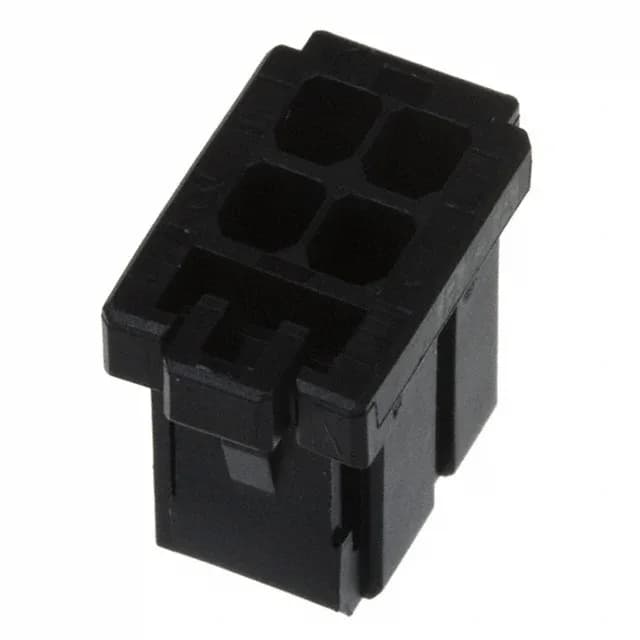

Receptacle Housing for the Dynamic D-1200 Line
The 1-1827864-2: The housing uses a 0.098" (2.50mm) pitch with a 0.130" (3.30mm) row spacing — the same footprint as the D-1200 header family, so the board layout is set once you pick the header. It accepts the standard D-1200 female crimp socket terminals (ordered separately) and terminates with a simple crimp tool, making it a field-serviceable choice for harness builds.
This receptacle housing mates with any Dynamic D-1200 header of the same 2-row, 2.50mm pitch configuration — typically the 4-position through-hole or SMT headers. Free-hanging (in-line) mounting means the housing floats on the wire harness, not fixed to a panel or board.
