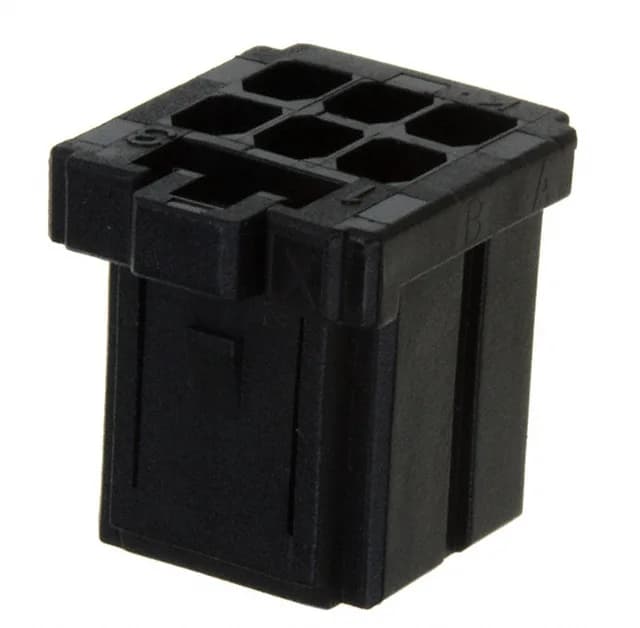

Housing for a 6-Circuit Power Harness
The 2.50mm pitch and dual-row layout with 0.130" (3.30mm) row spacing give it a compact footprint for a 6-circuit power distribution point, while the latch lock secures the mated pair against vibration without requiring a secondary fastener.
The 2.50mm pitch is the critical dimension for board-layout compatibility — it must match the mating header's pin spacing exactly. The dual-row arrangement with 3.30mm row spacing keeps the 6 circuits within a 7.5mm-wide housing body, which fits standard 0.100" grid layouts with some routing room between rows. For field-service or repeated mate/unmate cycles, the latch holds retention force without relying on friction alone.
