TE Connectivity AMP Connectors 1-1863003-2 — Connector Housings

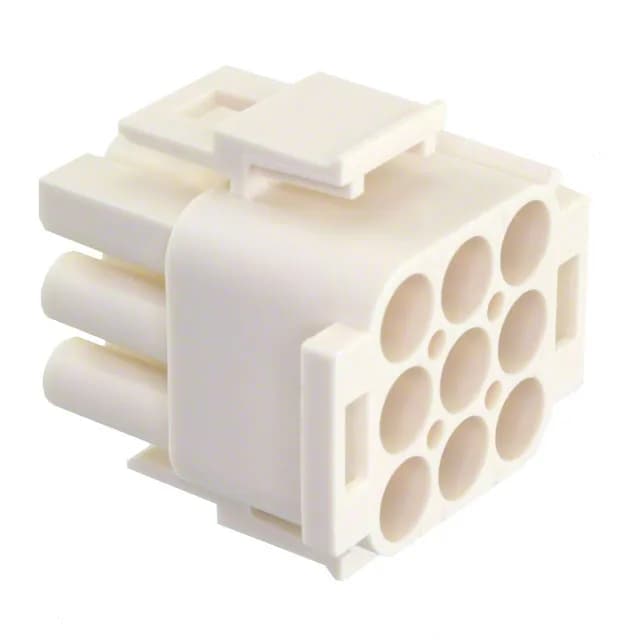

TE Universal MATE-N-LOK 1-1863003-2, 9-Pos Plug Housing

MPN1-1863003-2
Active

TE Connectivity Universal MATE-N-LOK plug housing, 1-1863003-2, 9 positions, 3 rows, natural PA66 nylon, free-hanging in-line, latch holder, crimp termination, contacts not included.

$0.7900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1863003-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesUniversal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1863003-2 specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeMale or Female
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
PackageBulk
Rows3
Contact terminationCrimp
Positions9

Product details

Plug Housing for a 9-Circuit Harness

Mating and Contact Selection

This plug housing accepts either male or female crimp contacts (sold separately), which means the same shell can serve as either the pin or socket side of the connection depending on the terminal loaded. The 3-row, 9-position layout matches the standard Universal MATE-N-LOK grid pattern; confirm the mating receptacle housing uses the same 3-row configuration and latch-compatible geometry.

It remains in the current catalog with no announced end-of-life or successor.

Frequently asked questions

Where can I buy 1-1863003-2?

The 1-1863003-2 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.

What contacts are compatible with 1-1863003-2?

This plug housing accepts male or female crimp contacts from the Universal MATE-N-LOK terminal family. The contacts are not included with this housing and must be ordered separately.
