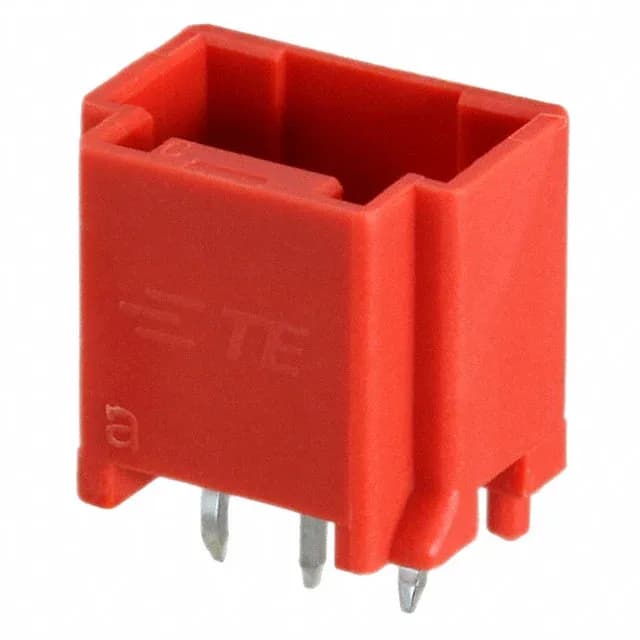

TE Connectivity AMP Connectors Grace Inertia, GIC series, 1-1871843-3, Board to Cable/Wire header, 3 circuits, 0.098" (2.50mm) pitch, single row, shrouded 4-wall, latch holder, through hole, kinked pin solder termination, red insulation, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Red |
| Insulation height | 0.445\" (11.30mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
The 1-1871843-3: Single-row, all positions loaded—no empty slots to work around in the harness or on the PCB. The latch holder fastening keeps the mated pair engaged under vibration; it's a positive lock, not a friction-only ramp.
Supplied by TE Connectivity AMP Connectors. Sourced through independent distribution—date codes and lot traceability provided on request.
Board to Cable/Wire style—mates with a GIC series receptacle housing (sold separately).
Yes—the fastening type is a latch holder, which provides a positive lock between the header and its mating receptacle housing.
The mating pitch is 0.098" (2.50mm), standard for the Grace Inertia GIC series.
