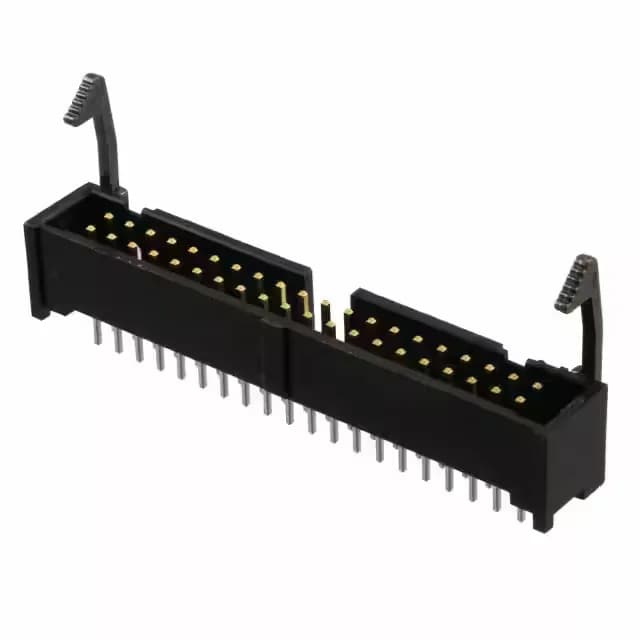

TE Connectivity AMP-Latch series, 1-1888381-3, board-to-cable/wire header, 40 positions, 2.54 mm pitch, shrouded 4-wall, through-hole solder, male pin contacts, gold or gold-palladium mating finish, latch lock/eject hooks, UL94 V-0, rated 1 A per contact at 250 VAC.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-1888381-3: RoHS3 compliant per TE's current material declaration — no restricted substances above the threshold.
This header mates with AMP-Latch IDC socket connectors that accept 0.100" pitch ribbon cable — the latch lock/eject hooks engage the socket's locking ears for a positive retention. A keying slot in the housing prevents mis-mating with non-keyed counterparts — confirm the mating socket has the matching keyway profile.
The mating half is an AMP-Latch IDC socket connector (e.g., 1-746285-3 or similar) that accepts 0.100" pitch ribbon cable and has latch-compatible locking ears. Confirm the keying slot alignment before ordering.
Yes, it is listed as ROHS3 Compliant by TE Connectivity.
Yes, the housing includes a keying slot to prevent mis-mating with non-keyed connectors.
