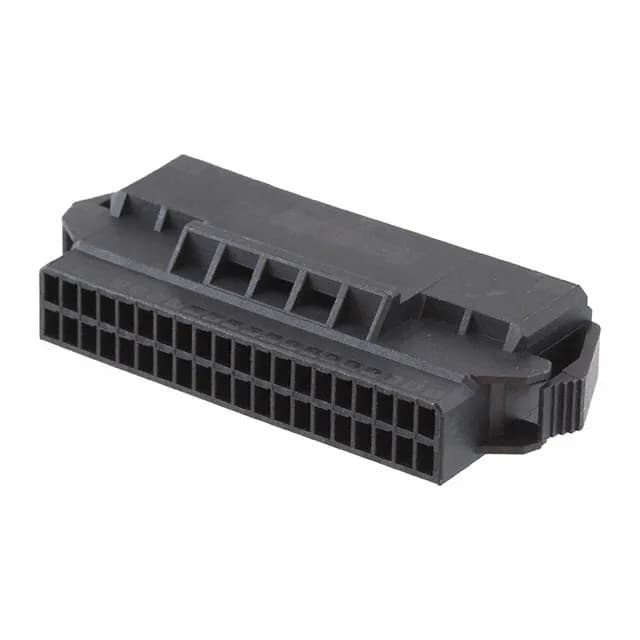

TE Connectivity Dynamic D-1100 series, 1-1903128-0, 40-position plug housing, 2.00mm pitch, 2 rows, 0.130" (3.30mm) row spacing, panel mount snap-in, crimp termination, black thermoplastic, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-1100 |
| Type | Tab |
| Mounting | Panel Mount, Snap-In |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Row spacing | 0.130\" (3.30mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 40 |
This housing mounts via snap-in clips into a panel cutout — no screws or brackets needed. The 2-row, 40-position layout uses a 0.130" (3.30 mm) row spacing, which gives enough room for 20-22 AWG wire bundles without crowding.
The plug housing mates with the Dynamic D-1100 receptacle housing (e.g., 1-2333134-5, a 30-position version) that carries female socket contacts.
The 1-1903128-0 plug housing accepts Dynamic D-1100 tab crimp contacts, sold separately. The exact terminal part number depends on your wire gauge — use the TE Dynamic D-1100 contact selection guide to match the terminal to your harness.
The mating half is a Dynamic D-1100 receptacle housing with female socket contacts, such as the 30-position 1-2333134-5. Both use the same 2.00 mm pitch and locking ramp fastening system.
This part is sourced to order against your BOM quantity.
