TE Connectivity AMP Connectors 1-1903130-2 — Connector Housings

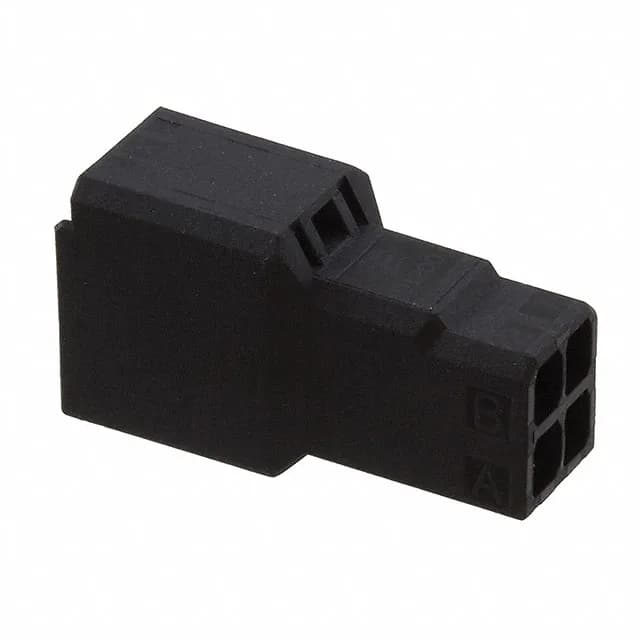

TE Dynamic D-1200 1-1903130-2 Plug Housing, 4 Pos, 2.50mm

MPN1-1903130-2
Active

TE Connectivity Dynamic D-1200 series, plug housing, 4 circuits, 2.50mm pitch, 2 rows, free-hanging in-line, crimp termination, black thermoplastic polyester housing.

$0.5500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-1200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1903130-2 specifications
ParameterValue
SeriesDynamic D-1200
TypeTab
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typePush-Pull
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Row spacing0.130\" (3.30mm)
Rows2
Contact terminationCrimp
Positions4

Product details

2.50mm Pitch, 4-Position Plug Housing for Harness Builds

The 1-1903130-2: It's a free-hanging (in-line) housing designed for crimp termination — you bring your own contacts, as the listing notes they are not included. Black housing, push-pull fastening, and the 0.130" (3.30mm) row spacing gives enough room for 20-18 AWG wire with the matching Dynamic D-1200 crimp terminals.

Mating Half and Contact Reality

This plug housing mates with the Dynamic D-1200 receptacle header of the same pitch and row count — look for a 4-position, 2-row, 2.50mm pitch header in the series. The tab-type contacts (male) go into this housing; the mating receptacle uses female socket contacts. Since contacts are not included in the housing order, you'll need to source the crimp terminals separately — TE's part numbering for the D-1200 tab terminal is something like 1-1703532-x (the x varies by plating and wire gauge). The push-pull latch is the primary retention; no secondary lock on this housing, so make sure the terminal locks into the cavity with an audible click during harness assembly.

No obsolescence concern here — it's a current-production part in the Dynamic D-1200 line.

Frequently asked questions

Does 1-1903130-2 include contacts?

No, the 1-1903130-2 is a plug housing only — contacts are not included. You need to order the matching Dynamic D-1200 crimp terminals separately for the tab-type contact interface.

What is the mating connector for 1-1903130-2?

The mating connector is a Dynamic D-1200 receptacle header with the same 2.50mm pitch and 2-row, 4-position layout. Look for a 4-position female socket header in the series to complete the wire-to-board connection.

Where can I buy 1-1903130-2?

Sourced per RFQ against your BOM quantity. Availability and pricing confirmed at quote time.
