TE Connectivity AMP Connectors 1-1903130-3 — Connector Housings

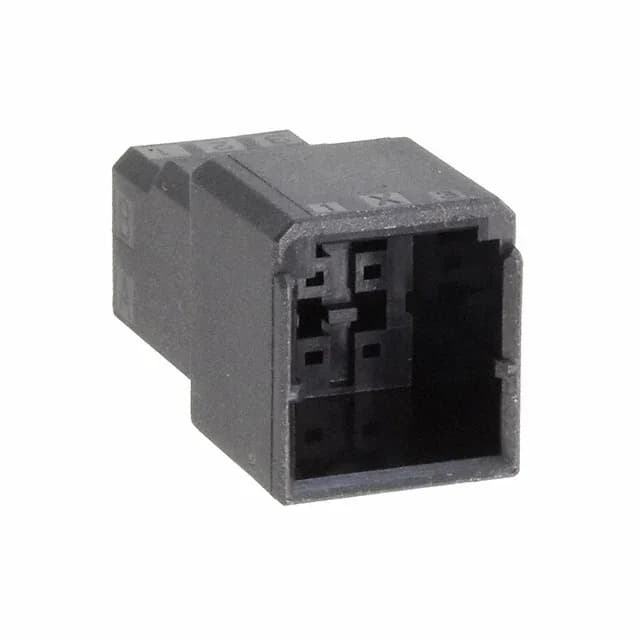

TE Dynamic D-1200 1-1903130-3 Plug Housing, 6 Pos, 2.50mm

MPN1-1903130-3
Active

TE Connectivity Dynamic D-1200 series plug housing, 1-1903130-3, 6 positions, 2 rows, 0.098" (2.50mm) pitch, 0.130" (3.30mm) row spacing, crimp termination, free-hanging, black thermoplastic housing, -55°C to 105°C.

$0.8000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-1200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1903130-3 specifications
ParameterValue
SeriesDynamic D-1200
TypeTab
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typePush-Pull
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Row spacing0.130\" (3.30mm)
Rows2
Contact terminationCrimp
Positions6

Product details

Plug Housing for the Dynamic D-1200 Series

The TE Connectivity 1-1903130-3 is a 6-position, 2-row plug housing from the Dynamic D-1200 series, on 0.098" (2.50mm) pitch with a 0.130" (3.30mm) row spacing.

Every BOM line for the 1-1903130-3 needs a companion terminal order. The Dynamic D-1200 series uses tab-type crimp contacts; the exact terminal part number depends on the wire gauge you're running. For a harness builder, this means adding a terminal reel or strip to the kit before the press runs. The housing accepts the standard Dynamic D-1200 crimp terminals — confirm the wire range against the terminal datasheet before committing the BOM.

Frequently asked questions

Where can I buy 1-1903130-3?

Submit a request for quote (RFQ) for current pricing and availability — confirmed at quote time.

Are contacts included with 1-1903130-3?

No. The listing explicitly notes contacts are not included. You must order the Dynamic D-1200 crimp terminals separately for the wire gauge you are using.
