TE Connectivity AMP Connectors 1-1926720-6
MPN1-1926720-6
Active

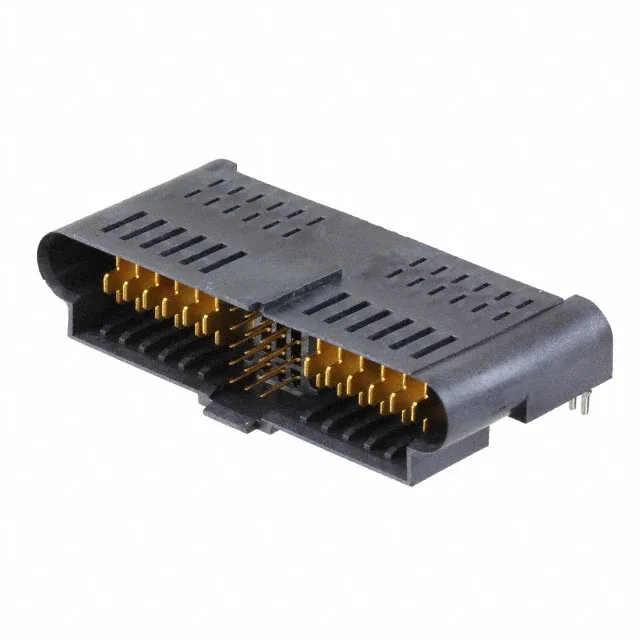

CONN HEADER 27POS EDGE MNT
$16.27Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMINIPAK HDL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MINIPAK HDL |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Header, Male Pins and Blades |
| Voltage rating | 250V |
| Current rating | 16A |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.079\" (2.00mm) |
| Package | Tray |
| Features | Board Lock, Mating Guide |
| Termination | Press-Fit |
| Contact finish | Gold or Gold-Palladium |
| Positions | 27 |
| Contact layout, typical | 15 Signal, 12 Power |
| Contact finish thickness | 30.0µin (0.76µm) |
