TE Connectivity AMP Connectors 1-1969540-2 — Connector Housings

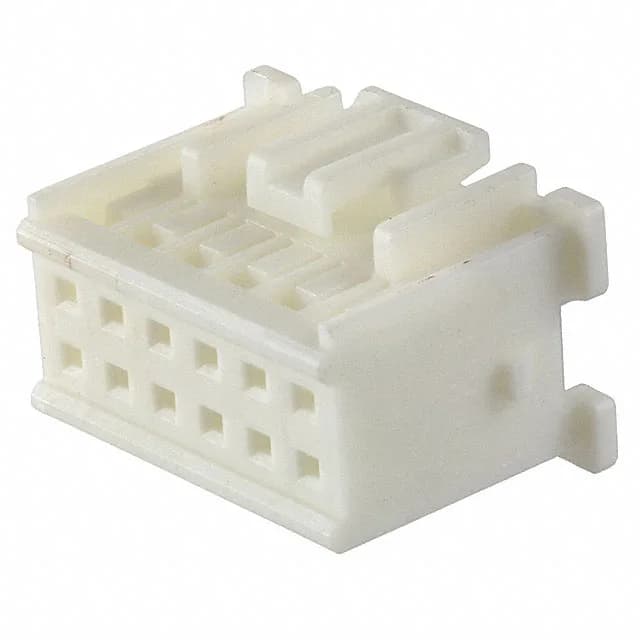

TE Connectivity 1-1969540-2 Economy Power 2.5 Receptacle

MPN1-1969540-2
Active

TE Connectivity Economy Power 2.5 series, receptacle housing, 12 positions, 2 rows, 0.098" (2.50mm) pitch, free-hanging (in-line), latch lock, white, crimp termination, contacts not included.

$0.4100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesEconomy Power 2.5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1969540-2 specifications
ParameterValue
SeriesEconomy Power 2.5
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorWhite
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Row spacing0.098\" (2.50mm)
Rows2
Contact terminationCrimp
Positions12

Product details

What This Economy Power 2.5 Housing Is

The 0.098" (2.50mm) pitch matches the standard Economy Power 2.5 header footprint, and the white polyamide (nylon) body carries a latch lock for positive retention in the mated harness.

The 12 circuits in two rows at 2.50mm pitch mean this housing pairs with the standard dual-row Economy Power 2.5 header. Because the housing is free-hanging, it routes as an in-line splice or harness drop; there is no board-mount provision.

This housing ships without contacts. The note on the listing is explicit: Contacts Not Included. The termination style is crimp, so a hand crimp tool or automated press with the correct applicator is required to attach terminals to the wire before insertion into the housing.

Frequently asked questions

What is the pitch of the 1-1969540-2 housing?

The pitch is 0.098" (2.50mm) on both the position spacing and the row spacing, matching the standard Economy Power 2.5 header footprint.
