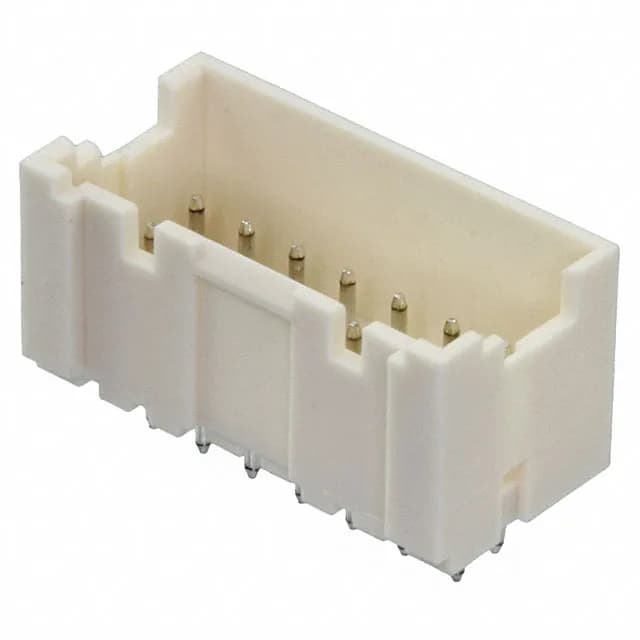

TE Connectivity AMP Connectors Economy Power 2.5 header, order code 1-1969584-4, 14 positions, dual row, 2.50 mm pitch, 4.2 A, 250 VAC, tin-plated mating contacts, through hole, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | Economy Power 2.5 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 4.2A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.386\" (9.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 14 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The 1-1969584-4 is the 14-circuit member of TE's Economy Power 2.5 header line, a dual-row shrouded header for board-to-cable/wire applications. It carries tin-plated mating contacts rated 4.2 A at 250 VAC, mounts through hole with kinked pin solder termination, and uses a friction-lock fastening system.
