TE Connectivity AMP Connectors 1-1971775-5 — Connector Housings

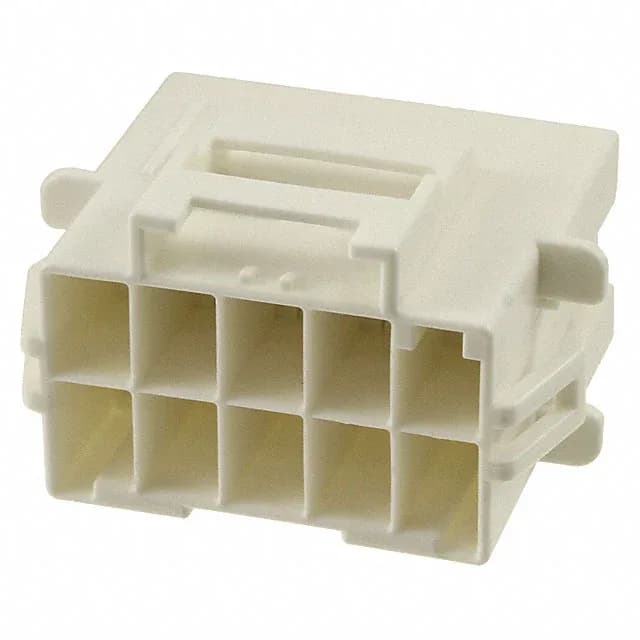

TE 1-1971775-5 Power Triple Lock Receptacle, 10 Pos, 6.00 mm

MPN1-1971775-5
Active

TE Connectivity Power Triple Lock, Standard receptacle housing, 1-1971775-5, 10 positions, 2 rows, 6.00 mm pitch, 0.319" row spacing, panel mount snap-in, latch lock, natural PBT, -55°C to 105°C, crimp termination, contacts not included.

$0.8100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower Triple Lock, Standard
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1971775-5 specifications
ParameterValue
SeriesPower Triple Lock, Standard
TypeTab
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorNatural
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.236\" (6.00mm)
PackageBulk
Row spacing0.319\" (8.10mm)
Rows2
Contact terminationCrimp
Positions10

Product details

10-Position Power Triple Lock Receptacle Housing

What Fits and What It Mates With

The mating plug is the corresponding Power Triple Lock header (male) housing, also in the 10-position, 6.00 mm pitch layout. The latch lock on this receptacle engages with the mating half for a vibration-resistant connection.

Panel Mount and Snap-In Installation

The housing mounts directly into a panel cutout with a snap-in fit — no additional hardware or brackets. The 0.319" (8.10 mm) row spacing and 6.00 mm pitch define the panel opening geometry.

Frequently asked questions

What contacts fit 1-1971775-5?

The 1-1971775-5 is a receptacle housing that accepts Power Triple Lock crimp terminals with a tab contact type. Contacts are not included with this housing and must be ordered separately.

Where can I buy 1-1971775-5?

This part is sourced to order.
