TE Connectivity AMP Connectors 1-1971817-3 — Pin Headers

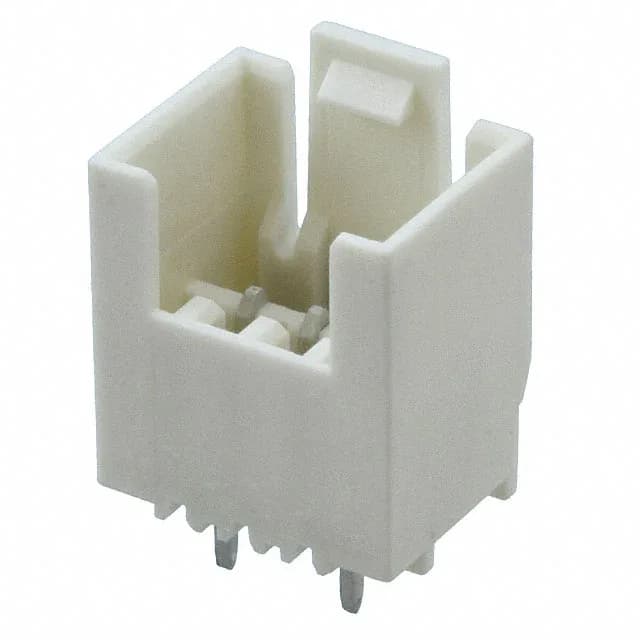

1-1971817-3 TE Connectivity Header, 3 Pos, 2.5mm

MPN1-1971817-3
Active

TE Connectivity AMP Connectors 1-1971817-3, a 3-position single-row shrouded header, 0.098" (2.50mm) pitch, through-hole solder termination, tin-plated contacts, locking ramp fastening, natural PA66 housing, UL94 V-0.

$0.7100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1971817-3 key specifications
ParameterValue
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Operating temperature-40°C~120°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.610\" (15.49mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk

All specifications

1-1971817-3 additional specifications
ParameterValue
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows1
Pitch0.098\" (2.50mm)
Positions3
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingTin

Product details

Tin Contacts, Glow Wire Compliant Housing

For higher cycle life, a gold-plated sibling like the 1-2232960-3 is the typical upgrade path.

The lifecycle status is Active, and the part is ROHS3 Compliant.

Closest Functional Peer: 1-2232960-3

The closest functional second-source is the 1-2232960-3. It shares the same 3-position, single-row, shrouded, locking ramp design, same 0.098" pitch, same tin contacts, and same UL94 V-0 material. The main difference is the package: the 1-1971817-3 ships in Bulk, while the 1-2232960-3 ships in Box. Both are Active. If you have a preferred packaging format or a supplier relationship, that may tip the choice.

Frequently asked questions

Is 1-1971817-3 RoHS compliant?

Yes, it is ROHS3 Compliant.

What is the closest functional second-source for 1-1971817-3?

The 1-2232960-3 is the closest match — same 3-position, single-row, shrouded, locking ramp header with tin contacts and UL94 V-0 housing. The main difference is packaging: Bulk vs Box.
