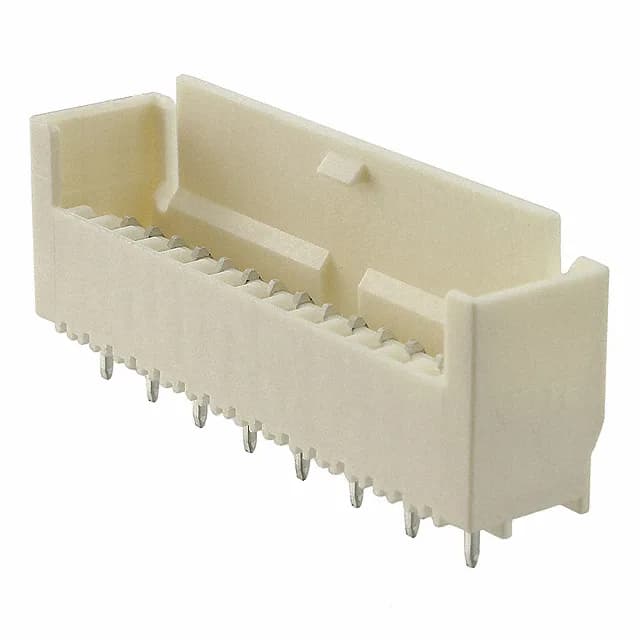

TE Connectivity AMP Connectors header, order code 1-1971818-5, 15 positions, single row, 2.50 mm pitch, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall, locking ramp.
TE 1-1971818-5 Header, 15 Pos, 2.50mm, Shrouded
MPN1-1971818-5
Active
TE Connectivity AMP Connectors header, order code 1-1971818-5, 15 positions, single row, 2.50 mm pitch, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall, locking ramp.
$1.7204Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.610\" (15.49mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 15 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
How do I get current pricing and availability for 1-1971818-5?
The 1-1971818-5 is an active-production part. Pricing and stock are confirmed at RFQ against the BOM quantity.
