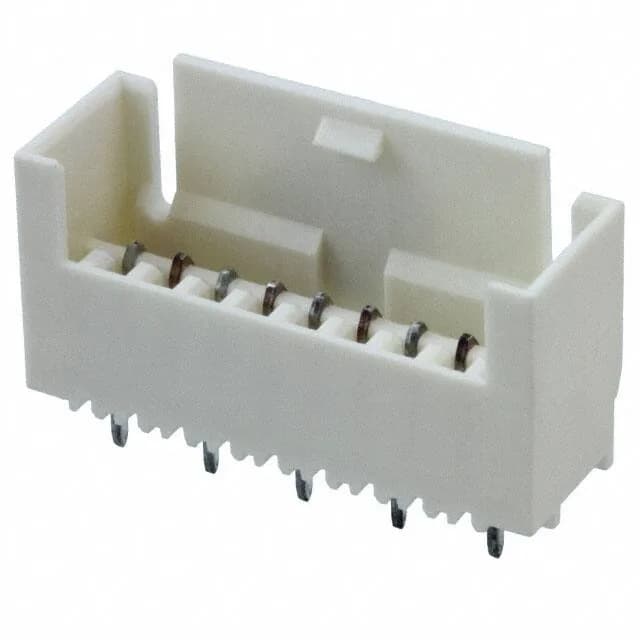

TE Connectivity AMP Connectors 1-1971837-9, Board to Cable/Wire header, 9 positions, 2.50 mm pitch, single row, shrouded - 4 wall, through hole solder, silver contact finish, locking ramp, glow wire compliant, UL94 V-0, -40°C~120°C.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C~120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.610\" (15.49mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 9 |
| Contact finish - post | Silver |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Silver |
The header is glow wire compliant, meeting the IEC 60335-1 glow wire test for household appliances.
The base product number is 1971837, which can be used to search for related accessories and mating receptacles in the same series.
1-1971837-9 is sourced through independent distribution. No stock-holding claim is made — each order is sourced per request.
