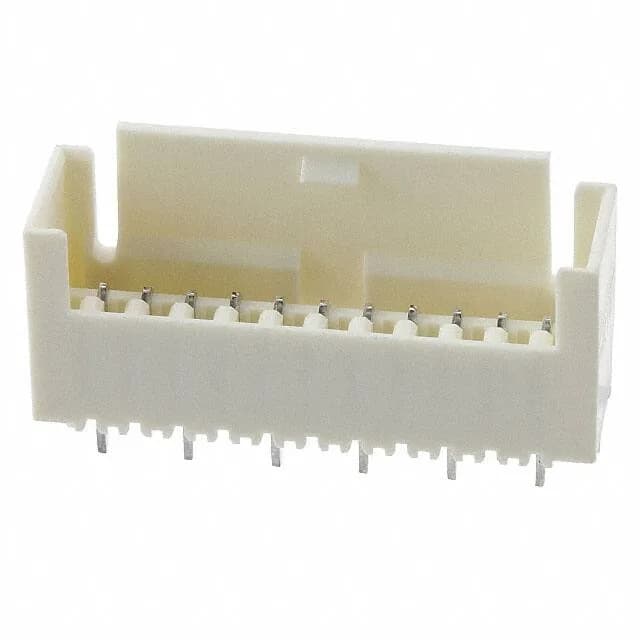

TE Connectivity AMP Connectors header, order code 1-1971838-1, 11 positions, single row, 0.098" (2.50mm) pitch, silver-plated mating contacts, through-hole solder termination, shrouded - 4 wall, locking ramp.
TE 1-1971838-1 Header, 11 Pos, 2.50mm, Active
MPN1-1971838-1
Active
TE Connectivity AMP Connectors header, order code 1-1971838-1, 11 positions, single row, 0.098" (2.50mm) pitch, silver-plated mating contacts, through-hole solder termination, shrouded - 4 wall, locking ramp.
$1.0233Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C~120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.610\" (15.49mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 11 |
| Contact finish - post | Silver |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Silver |
Product details
Frequently asked questions
What is the 1-1971838-1's listed style and package?
Board to Cable/Wire style, shipped in Tube packaging.
What compliance documentation does TE Connectivity AMP Connectors provide for 1-1971838-1?
UL94 V-0 flammability rating on the polyamide housing. Glow wire compliant. RoHS/REACH status is manufacturer-provided per order.
