5-position, 5.00 mm pitch, latch-holder retention
The 1-1971895-5: Mating contacts are tin-plated, the through-hole termination uses tin-plated posts, and the header carries a 250 VAC rating with a UL94 V-0 polyamide housing.

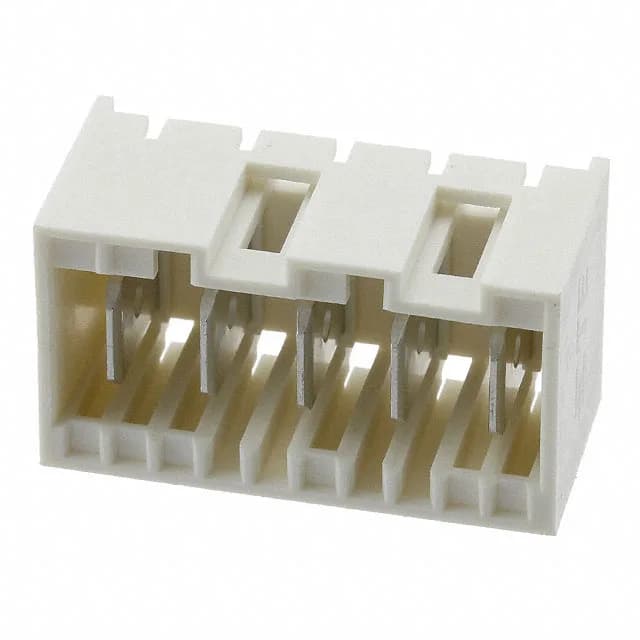

TE RAST 5 Header 1-1971895-5, 5 Pos 5.00mm
MPN1-1971895-5
Active
TE Connectivity RAST 5 header, order code 1-1971895-5, 5 positions, single row, 5.00 mm pitch, 250 VAC, tin-plated mating contacts, through-hole, solder termination, latch holder.
$0.9135Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RAST 5 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
