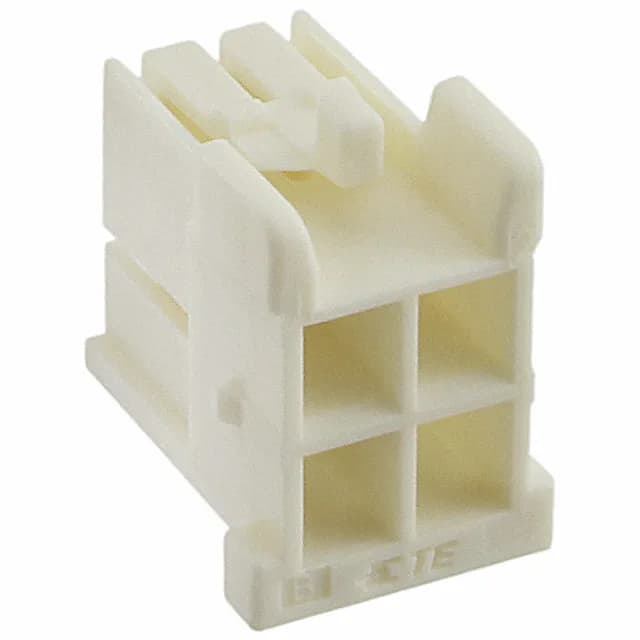

TE Connectivity Grace Inertia GIC plug housing, 1-1971905-2, 4 positions, 2 rows, 3.30 mm pitch, 5.20 mm row spacing, latch lock, female socket contacts, crimp termination, free hanging, natural PA66, -30°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -30°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.130\" (3.30mm) |
| Package | Bulk |
| Row spacing | 0.205\" (5.20mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 4 |
The 1-1971905-2: It is a free-hanging (in-line) connector with a 3.30 mm pitch and dual rows spaced at 5.20 mm. The housing uses a latch lock for positive retention and is molded from natural polyamide (PA66) with glass fill for dimensional stability. This is a housing only — contacts are not included and must be ordered as a separate line item.
No. This is a housing only; contacts are not included and must be ordered separately as crimp terminals.
The mating part is a Grace Inertia GIC header (male pin) with the same 4-circuit count and 3.30 mm pitch. Confirm the specific header order code from the series based on mounting style (through-hole or surface-mount) and orientation.
Submit a request for current pricing and availability.
