TE Connectivity AMP Connectors 1-1971905-3 — Connector Housings

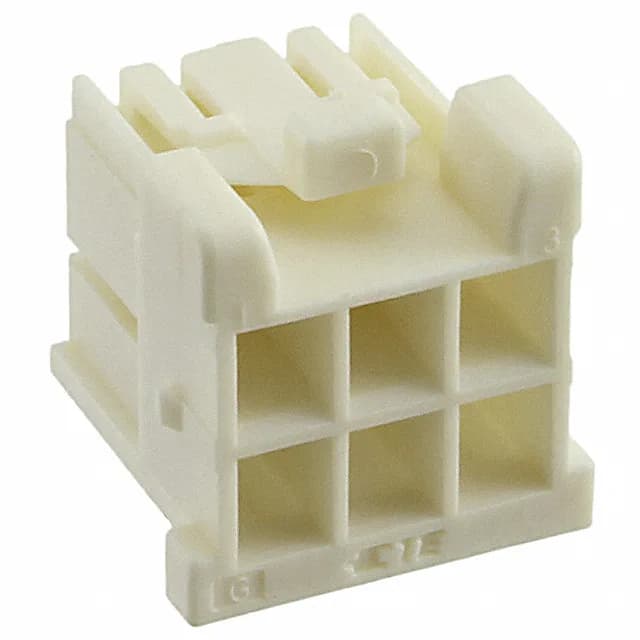

TE 1-1971905-3 Grace Inertia 6 Pos Plug Housing, 3.30mm

MPN1-1971905-3
Active

TE Connectivity Grace Inertia GIC plug housing, 1-1971905-3, 6 positions, 2 rows, 3.30mm pitch, 5.20mm row spacing, latch lock, natural PA66, free hanging, crimp termination, contacts not included.

$0.3200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1971905-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesGrace Inertia, GIC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1971905-3 specifications
ParameterValue
SeriesGrace Inertia, GIC
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-30°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.130\" (3.30mm)
PackageBulk
Row spacing0.205\" (5.20mm)
Rows2
Contact terminationCrimp
Positions6

Product details

The TE Connectivity 1-1971905-3 is a 6-position, 2-row plug housing from the Grace Inertia (GIC) series. It uses a 3.30 mm pitch and a 5.20 mm row spacing, with a latch lock for secure mating. The natural PA66 glass-filled housing is rated for -30°C to 105°C, making it suitable for under-hood automotive, industrial control cabinets, and outdoor equipment where the connector sees temperature cycling and vibration.

The housing accepts standard GIC crimp terminals for wire sizes typically in the 18-22 AWG range (confirm the terminal datasheet for your exact wire gauge). Plan for a separate BOM line for the contacts; the housing and terminals ship as distinct line items.

Frequently asked questions

Where can I buy 1-1971905-3 available via RFQ confirmation?

1-1971905-3 is sourced to order through independent distribution. Submit an RFQ for a firm quote and lead time.

Does 1-1971905-3 include contacts?

No, the 1-1971905-3 is a housing only — contacts are not included. You must order the matching Grace Inertia female socket crimp terminals separately.

What is the mating connector for 1-1971905-3?

The 1-1971905-3 mates with a Grace Inertia receptacle header of the same 3.30 mm pitch and 6-circuit count. The latch lock on the plug engages the header's locking ramp.
