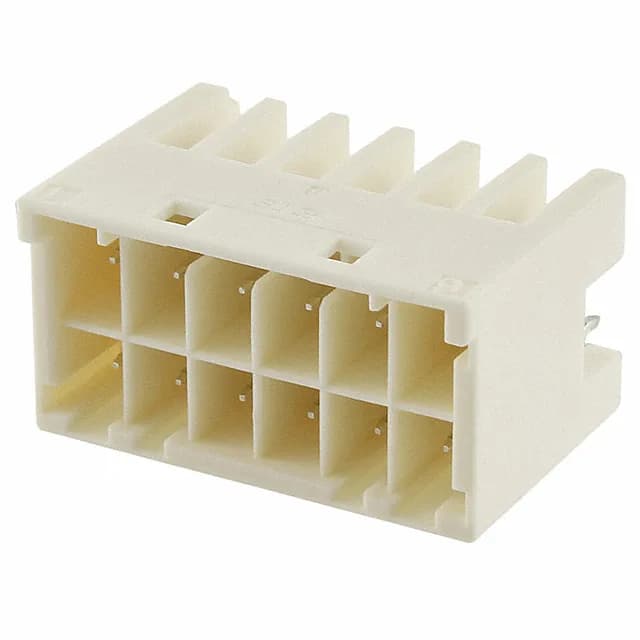

TE Connectivity AMP Connectors 1-1971906-6
MPN1-1971906-6
Active
$0.6100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.561\" (14.25mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.130\" (3.30mm) |
| Positions | 12 |
| Row spacing - mating | 0.205\" (5.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.575\" (14.60mm) |
| Contact finish - mating | Tin |
