TE Connectivity AMP Connectors 1-1986375-0 — Pin Headers, Sockets & Housings

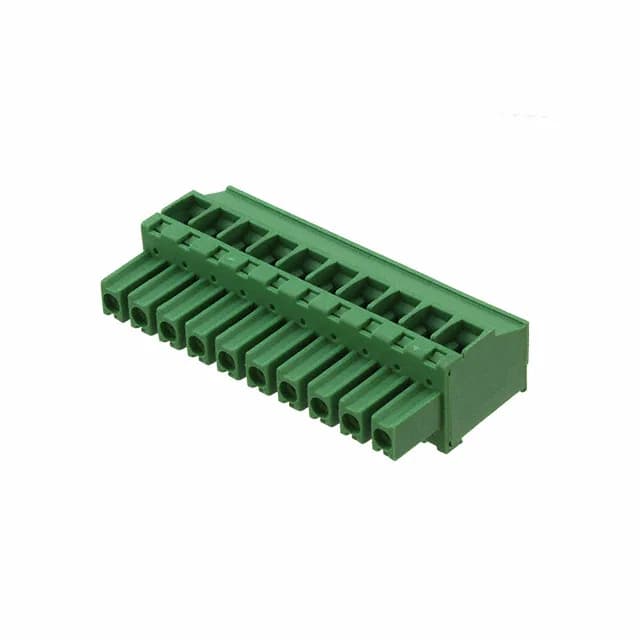

TE 1-1986375-0 Plug, 10 Pos, 3.81mm, Screw Clamp

MPN1-1986375-0
Active

TE Connectivity AMP Connectors plug, order code 1-1986375-0, 10 positions, single level, 0.150" (3.81mm) pitch, 11 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, 270° wire entry, screw-cage clamp termination.

$11.7862Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1986375-0 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL11 A
Plug wire entry270°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.756\" (19.20mm)

All specifications

1-1986375-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesSide Stacking
Screw sizeM2
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions10
Positions per level10
Contact mating finishTin

Product details

10-position plug, 3.81 mm pitch, rising cage clamp

The 1-1986375-0 is a 10-circuit plug from TE's terminal block connector family, accepting 14-30 AWG (0.05-2 mm²) wire into a rising cage clamp — the screw pushes a clamp plate down on the conductor, not the screw tip, so the wire stays under even pressure and won't cold-flow out of the termination.

Field-repairable with a screwdriver

Free-hanging with a 270° wire entry, the plug lets the cable dress flat against the panel or rail — the M2 screw is the only tool needed to re-terminate a pulled wire on site. Side-stacking feature means multiple plugs gang together without a separate interlocking piece — useful when a multi-circuit run needs to break into individual serviceable sections.

Frequently asked questions

What wire sizes does the rising cage clamp accept?

The clamp accepts 14-30 AWG (0.05-2 mm²) solid or stranded wire. The screw size is M2; a standard Pozidriv or flat-blade screwdriver is the only tool needed for termination or re-termination.

What compliance data is available for 1-1986375-0?

The plug is rated 11 A and 300 V under UL. RoHS and REACH compliance documentation is available from TE Connectivity for this part number.
