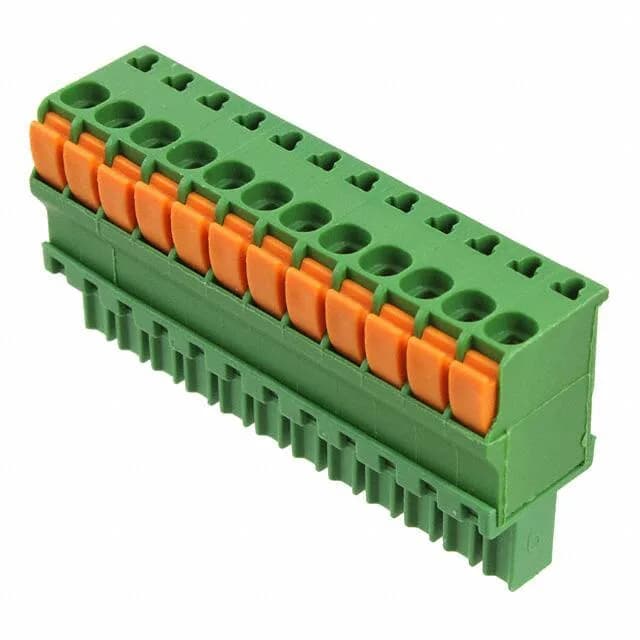

TE Connectivity AMP Connectors plug, female sockets, order code 1-1986693-2, 12 positions, single level, 0.138" (3.50mm) pitch, 9 A, 300 V, tin mating finish, free hanging, screwless leg spring push-in termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 9 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.459\" (11.66mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Side Stacking |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
The 1-1986693-2: Rated 9 A per contact at 300 V with tin-plated mating surfaces, the plug accepts 14-30 AWG (0.05-2 mm²) wire via a screwless leg spring, push-in termination — no tool required for insertion.
Wire entry is 180° straight into the housing; the side-stacking feature allows multiple plugs to be ganged side-by-side on the same wire bundle without increasing the profile.
The screwless leg spring accepts solid or stranded wire from 14 AWG to 30 AWG (0.05 mm² to 2 mm²).
The 1-1986693-2 is a plug with female sockets, free hanging (in-line) mounting, and a 180° straight wire entry.
