TE Connectivity AMP Connectors 1-1986711-5
MPN1-1986711-5
Active

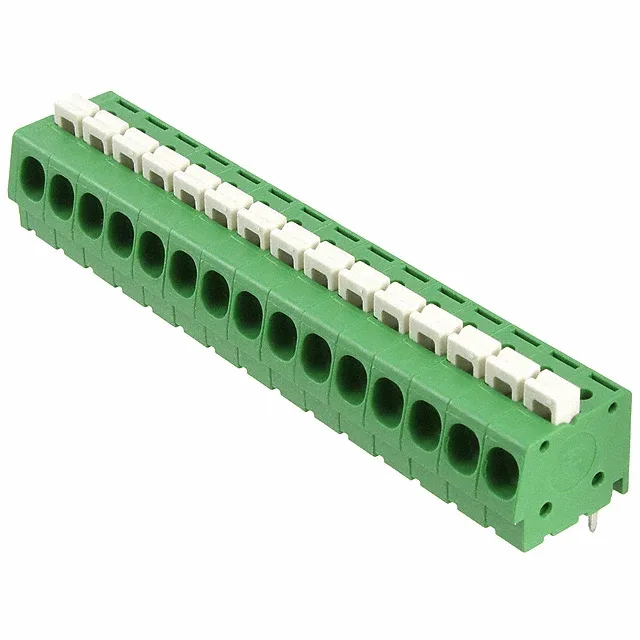

TERM BLK 15P SIDE ENTRY 5MM PCB
$20.89Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 16 A |
| Wire gauge | 12-30 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Clamp material - plating | Steel |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 15 |
