TE Connectivity AMP Connectors 1-1986724-5 — Pin Headers, Sockets & Housings

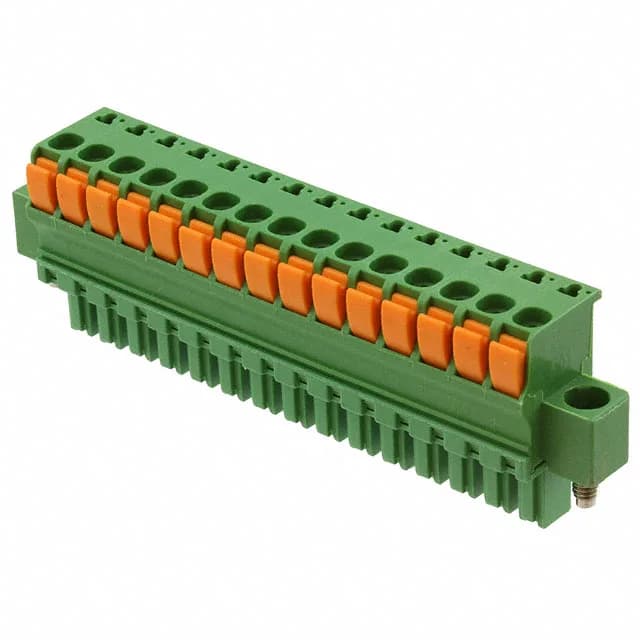

TE 1-1986724-5 Plug, 15 Pos, 3.81mm, Obsolete

MPN1-1986724-5
Obsolete

TE Connectivity AMP Connectors plug, order code 1-1986724-5, 15 positions, single level, 3.81 mm pitch, 9 A, 300 V, tin-plated mating contacts, free-hanging in-line, push-in spring termination, bulk.

$3.2995Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1-1986724-5 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL9 A
Plug wire entry180°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C~110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.459\" (11.66mm)

All specifications

1-1986724-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesMating Flange
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions15
Positions per level15
Contact mating finishTin

Product details

Push-in spring termination, 15-way plug

The 1-1986724-5 is a 15-position plug with female sockets from TE's 1986724 series, terminated by a screwless push-in spring — strip the wire, push it in, and the leg spring holds it. Rated 9 A at 300 V with tin-plated mating contacts, the plug accepts 14-30 AWG (0.05-2 mm²) and operates from -40°C to 110°C.

Obsolete — no direct replacement on record

TE Connectivity AMP Connectors lists the 1-1986724-5 as Obsolete with no successor order code from the original manufacturer.

Frequently asked questions

What wire gauge does the 1-1986724-5 accept?

The push-in spring termination accepts 14-30 AWG (0.05-2 mm²) solid or ferruled stranded wire.
