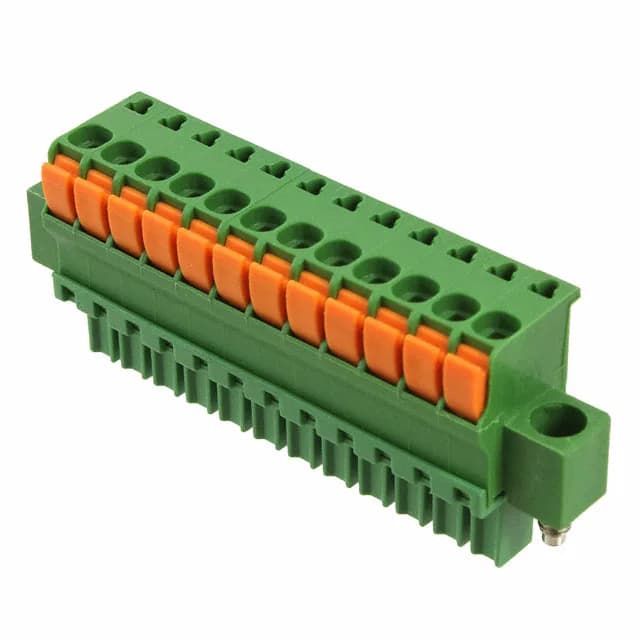

TE Connectivity AMP Connectors plug, female sockets, order code 1-1986725-2, 12 positions, single level, 0.138" (3.50mm) pitch, 9 A, 300 V, tin-plated mating contacts, free hanging, push-in spring termination, bulk.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 9 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.459\" (11.66mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
The 1-1986725-2 is a 12-position plug with female sockets from TE Connectivity AMP Connectors, terminated via screwless push-in spring contacts for 14-30 AWG wire.
No direct replacement exists in the current TE portfolio; a board spin or alternative series evaluation is required.
As an obsolete part, availability is limited to independent surplus channels. Submit an RFQ with target quantity; lot-specific pricing and stock are confirmed per inquiry.
Screwless push-in spring (leg spring) termination, accepting 14-30 AWG or 0.05-2 mm² wire.
