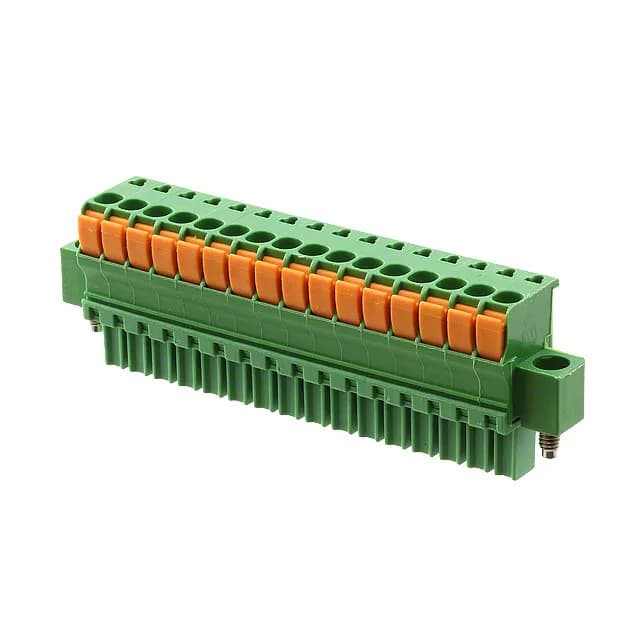

Plug, 16 circuits, push-in spring
The 1-1986725-6 is the 16-circuit member of TE's 1986725 series plug line, a free-hanging (in-line) female socket connector with a 3.50 mm pitch. Rated 9 A at 300 V with tin-plated mating contacts and a UL94 V-0 nylon housing, the connector accepts 14-30 AWG (0.05-2 mm²) wire via a screwless leg spring push-in termination.
The 1-1986725-6 is listed as Obsolete by TE Connectivity AMP Connectors. Availability is confirmed per RFQ through independent surplus channels.
The plug mates with a matching pin header of the same 3.50 mm pitch and 16-circuit layout. The mating flange on the housing provides positive alignment and retention. Termination uses a push-in spring mechanism — strip the wire to the correct length, push it into the entry, and the leg spring clamps the conductor. No screwdriver needed.
