TE Connectivity AMP Connectors 1-1986725-8 — Pin Headers, Sockets & Housings

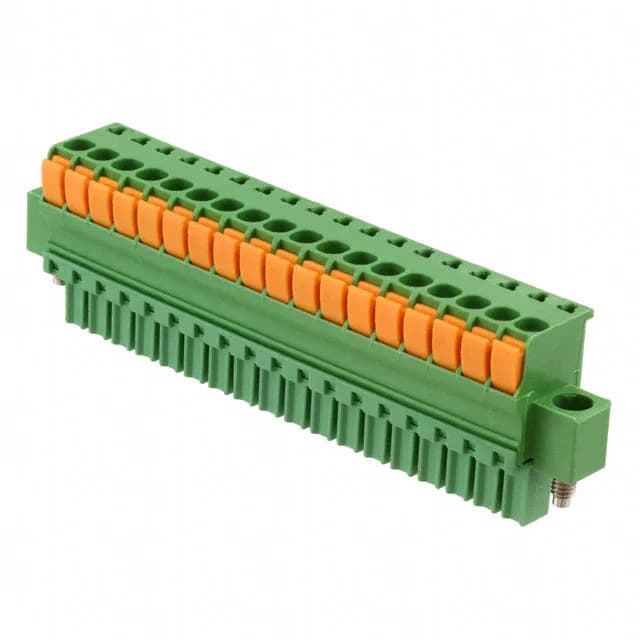

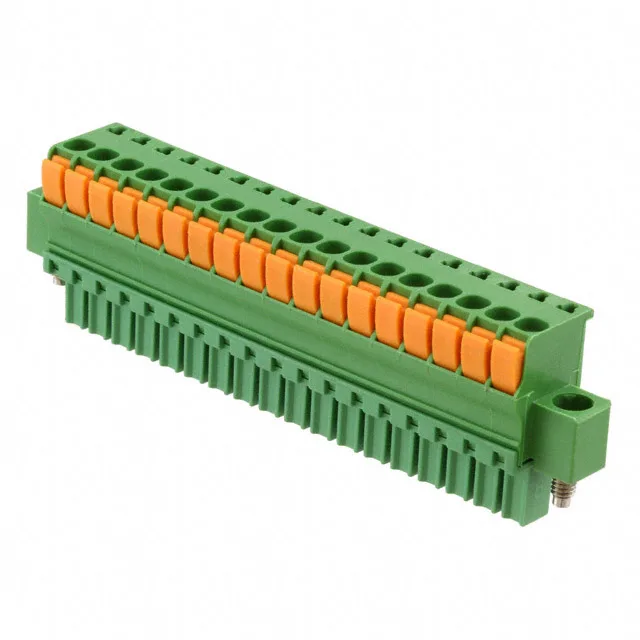

TE 1-1986725-8 Plug, Female Sockets, 18 Pos, 3.50mm

MPN1-1986725-8
Obsolete

TE Connectivity AMP Connectors plug, female sockets, order code 1-1986725-8, 18 positions, single level, 0.138" (3.50mm) pitch, 9 A, 300 V, tin-plated mating contacts, free hanging (in-line), screwless push-in spring termination.

$5.8600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1-1986725-8 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL9 A
Plug wire entry180°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.459\" (11.66mm)

All specifications

1-1986725-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesMating Flange
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions18
Positions per level18
Contact mating finishTin

Product details

18-position plug, 3.50 mm pitch

The 1-1986725-8 is an 18-position plug with female socket contacts from TE Connectivity AMP Connectors, using a 0.138" (3.50mm) pitch and a single-level layout. Rated 9 A at 300 V with tin-plated mating contacts, the plug terminates 14-30 AWG (0.05-2mm²) wire via a screwless push-in spring mechanism and mounts free hanging with a 180° wire entry.

Obsolete — sourcing available

Quantities are sourced through independent surplus channels and confirmed at RFQ — no stock-holding claim is made.
